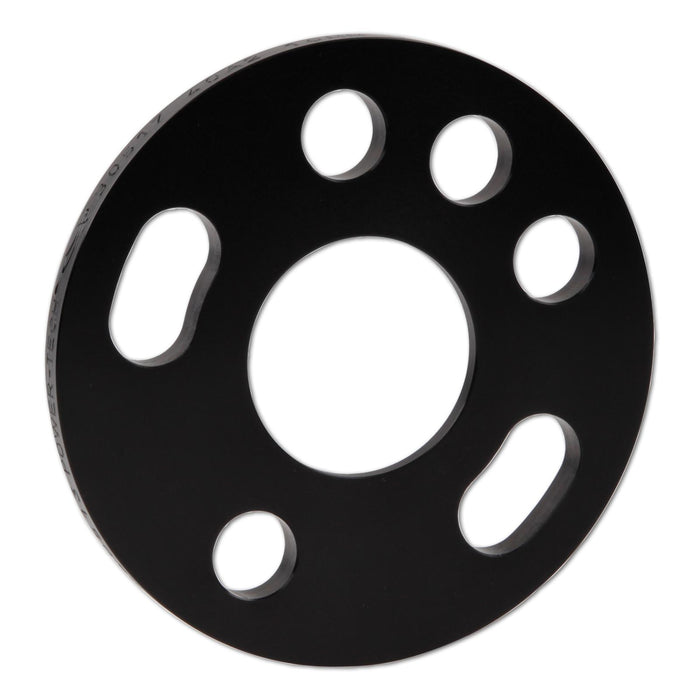

Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 57.1 with 13mm wheel hub ext
Description
Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 57,1 with 13mm wheel hub extension
System DZX+ 5, 7.5 and 10mm per wheel

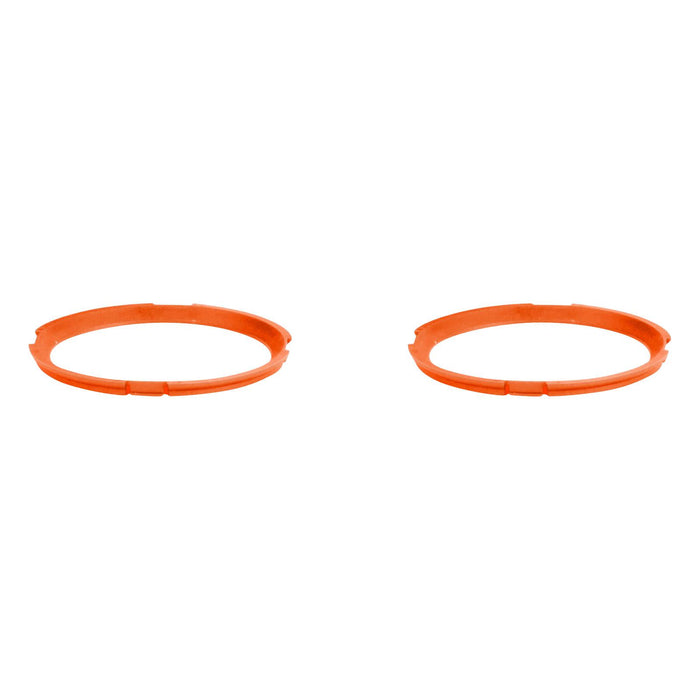

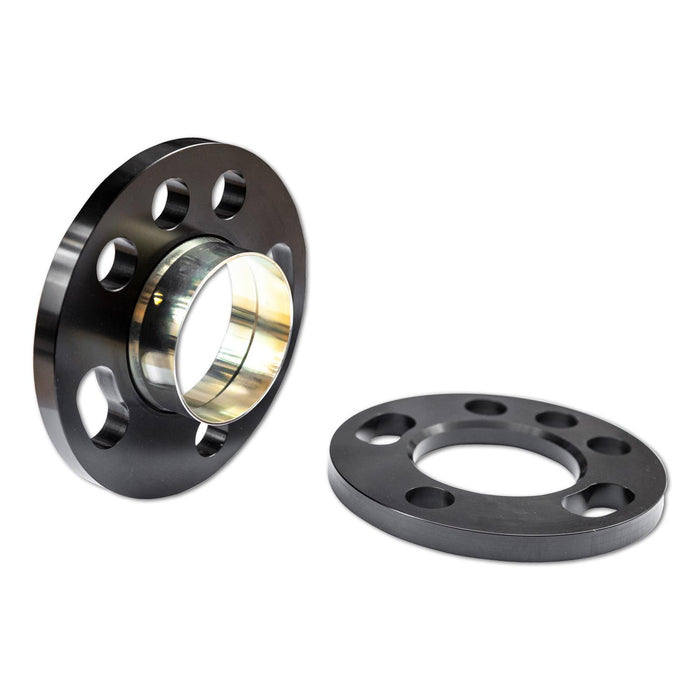

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

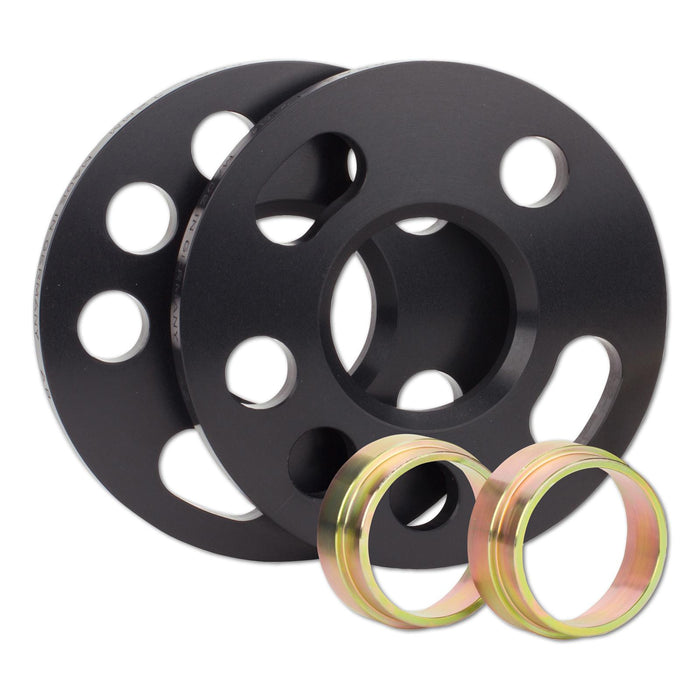

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver
Fitment
| Make | Model | Type | Chassis | Aspiration | KW | CCM | Cyl | Drivetrain | References |
|---|---|---|---|---|---|---|---|---|---|
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | 1.0 | Hatchback | Petrol | 44 | 999 | 3 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | 1.0 | Hatchback | Petrol | 48 | 999 | 3 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | 1.0 | Hatchback | Petrol | 55 | 999 | 3 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | 1.0 EcoFuel | Hatchback | Petrol/Compressed Natural Gas (CNG) | 50 | 999 | 3 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | 1.0 GTI | Hatchback | Petrol | 85 | 999 | 3 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | 1.0 TSI | Hatchback | Petrol | 66 | 999 | 3 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | e-Up | Hatchback | Electric | 60 | 0 | 0 | Front Wheel Drive | 312, 313, 325 |
| VW | UP (AA, 121, 122, BL1, BL2) 08/2011- | e-Up | Hatchback | Electric | 61 | 0 | 0 | Front Wheel Drive | 312, 313, 325 |
Media
Strength Proof:
Disclaimer
Disclaimer
Product Disclaimers:
- Note 313: Chamfer of the rim at least 5x45°, length of wheel hub max. 13,0mm
- Note 312: Only for front axle

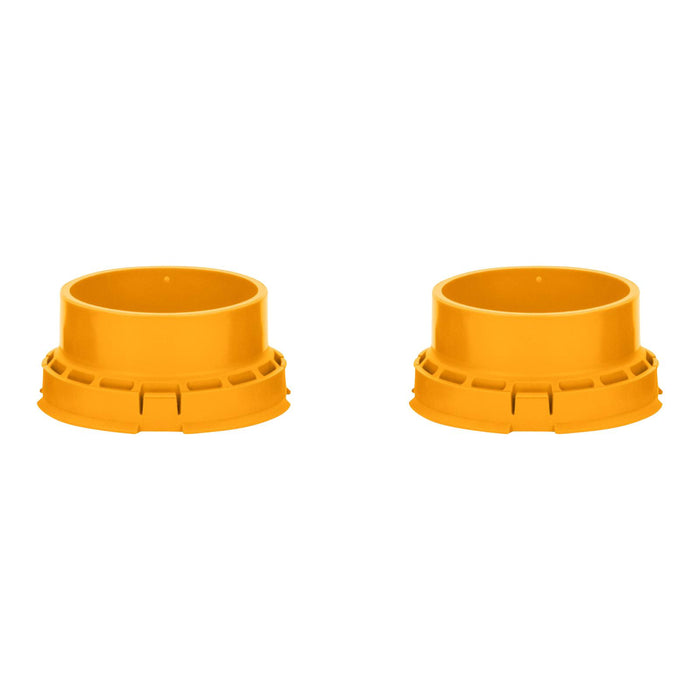

- Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
