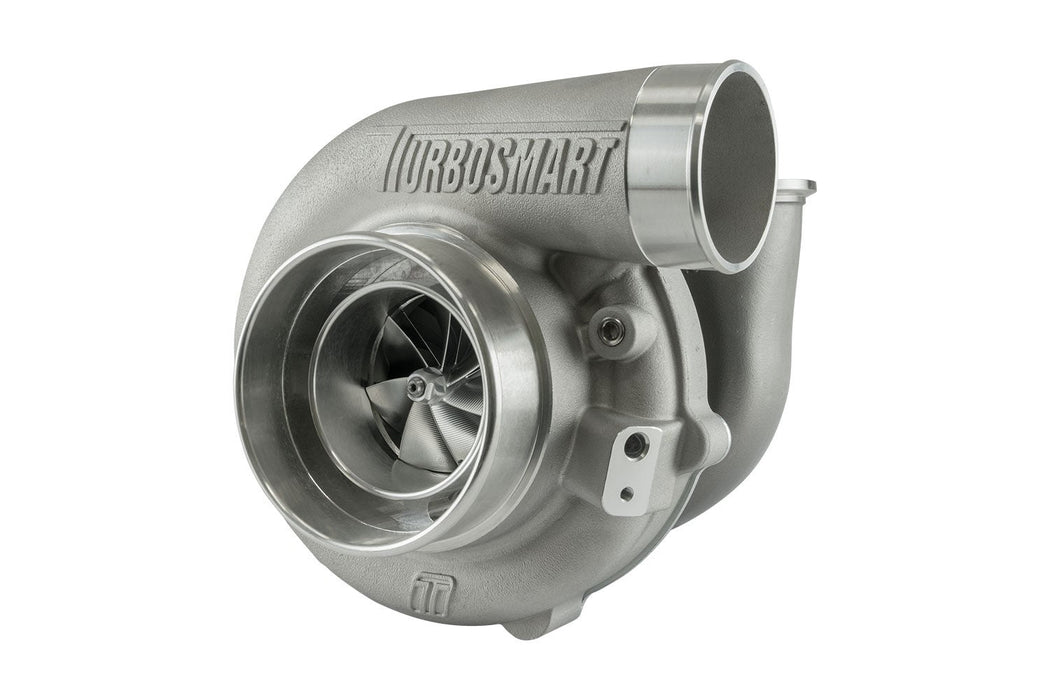

Turbosmart TS-1 Performance Turbocharger 6466 V-Band 0.82AR Externally Wastegated

Smaller, Lighter & Faster 鈥?The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.

The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you鈥檝e come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.

The TS-1 turbocharger series has taken a 鈥榳hole of engine鈥?approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines 鈥?while being smaller, lighter and faster in response than other solutions on the market.

Available In
TS-1 oil cooled turbochargers
TS-2 oil and water cooled turbochargers
V-Band, various T3 and T4 flange options
Reverse rotation (Selected Sizes)
Various AR鈥檚 options
Internal and external wastegate options available

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal AR鈥檚 and flow
T14 Inconel turbine wheel for extreme EGT鈥檚
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

SUPPLIED WITH
1 x Turbosmart Performance Turbocharger
2 x Weld Flanges (Turbine inlet and outlet)
2 x V-Band Clamps (Turbine inlet and outlet)
1 x Oil drain gasket

Specifications
Compressor Inlet: 4鈥?/ 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25鈥?
Turbine Exducer: 66mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00鈥?
Weight: 6.06kg / 13.3lbs
