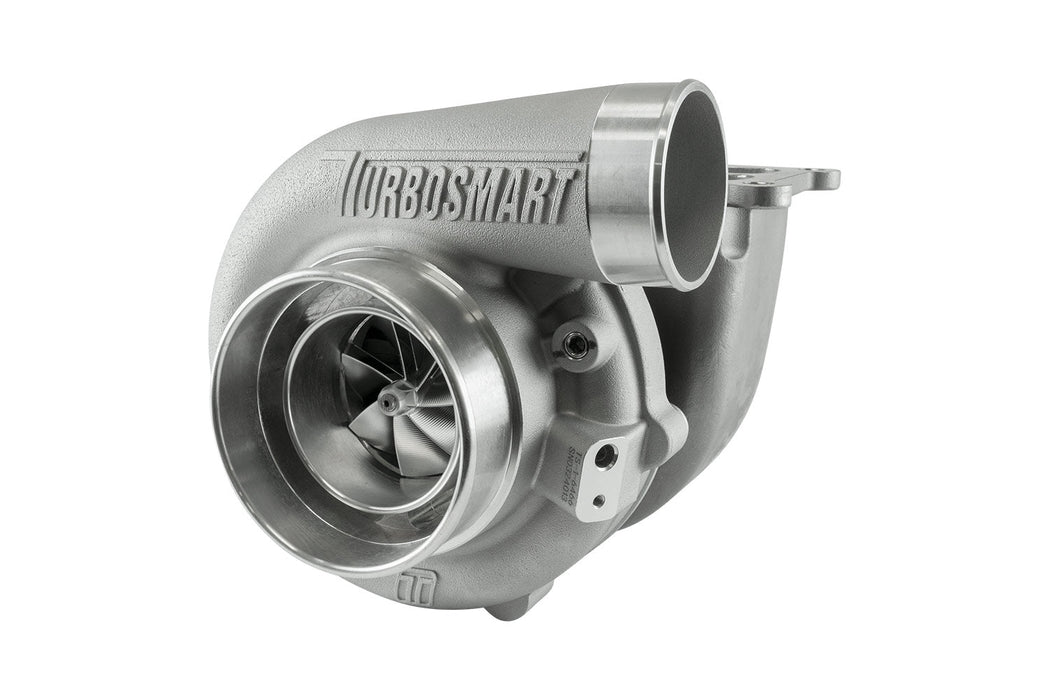

TS-1 Turbocharger 6466 T4 Divided 1.00AR Externally Wastegated

TS-1 Turbocharger 6466 T4 Divided 1.00AR Externally Wastegated
SKU: TS-1-6466B-D4100E

Smaller, Lighter, and Faster 鈥?the Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-1 series are oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you鈥檝e come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high-performance levels at lower shaft speeds. It is mated with a unique turbine wheel to provide power at high loads and maintain flow.

The TS-1 turbocharger series has taken an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines while being smaller, lighter, and faster in response than other solutions on the market.

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal A/R鈥檚 and flow
T14 Inconel turbine wheel for extreme EGT鈥檚
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications
Compressor Inlet: 4鈥?/ 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: T4 Divided Flange
Turbine Exducer: 66mm
Turbine AR: 1.00
Turbine Outlet: V-Band (3.00鈥?
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 750-930HP
