Subframe Bushings, Front, Billet Aluminum B5/B6/B7 Chassis

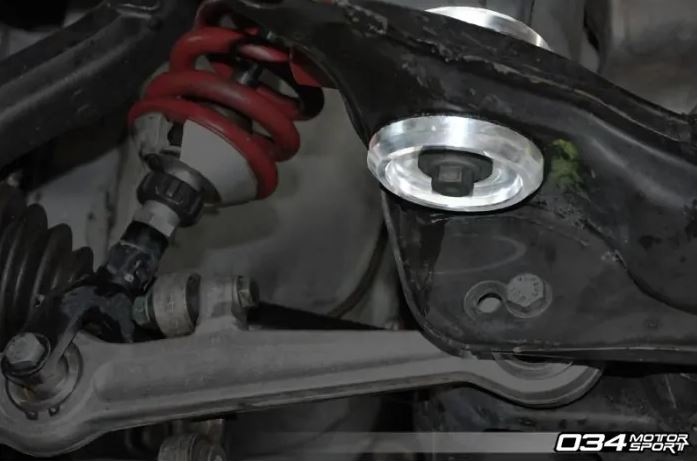

Finally deal with those rubber subframe bushings once and for all and dramatically increase the ability to hold suspension geometry under severe cornering forces. Stock rubber subframe bushings, while quiet and cushy, deflect under loads and allow the subframe to shift - which causes camber, caster and other geometry changes.

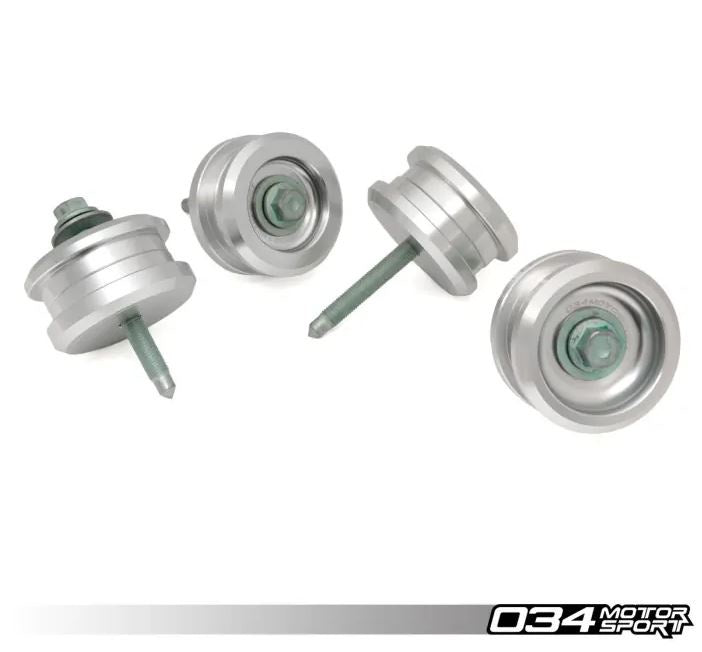

Designed with specific upper and lower halves for both the front and rear of the front subframe, our bushings are also individually labeled for ease of installation.

Includes enough pieces for one front subframe on Audi B5/B6/B7 chassis & C5 Audi A6/S6. Precision CNC machined in house from billet 6061 aluminum.

NOTE: This kit will not fit cars with a CVT transmission.

New OEM subframe bolts now included with every bushing set!

NOTE - Our bushings are precision CNC machined to within a few ten-thousandths of an inch, however the stock steel subframe has VERY sloppy tolerances.  Due to this, it will be required to clearance your subframe to fit these bushings, a sanding roll or carbide grinding bit can be used.  The amount of material varies on each subframe.  Audi made these very sloppy as the stock subframe bushings have plastic sleeves, however our billet aluminum bushings require a much higher tolerance fit.
