Product Description:

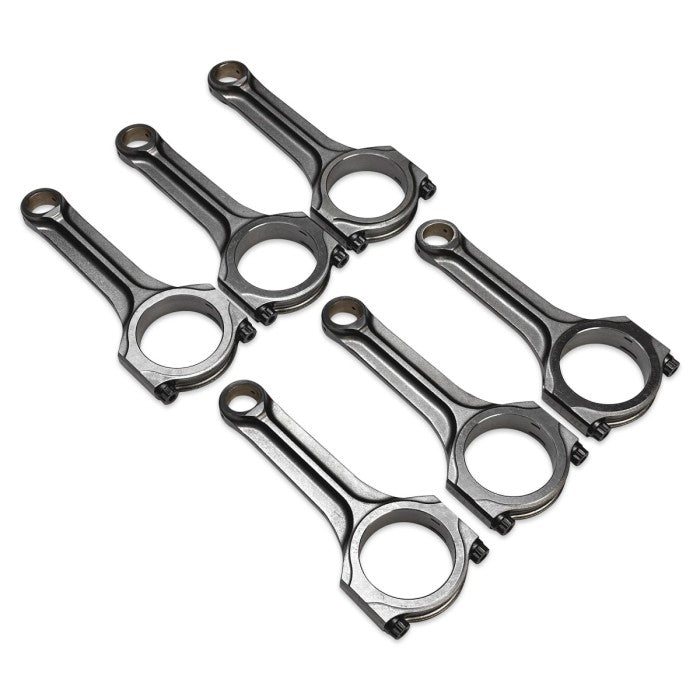

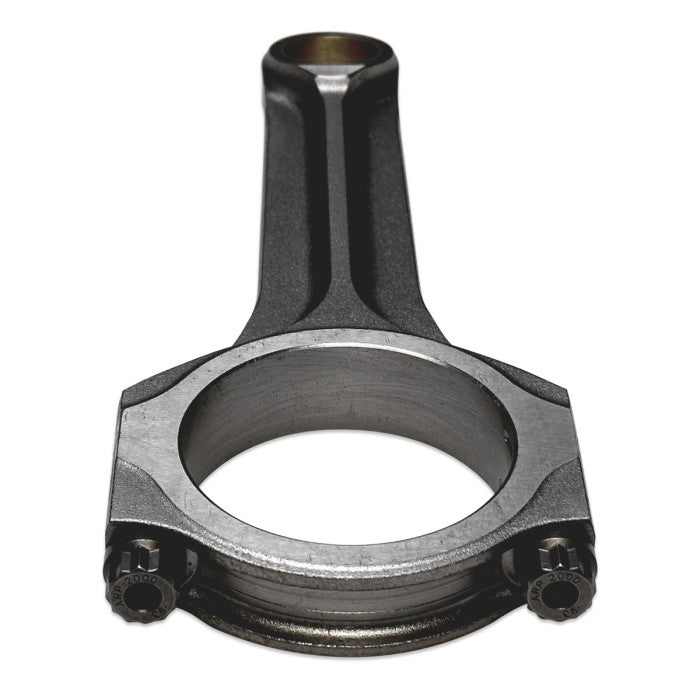

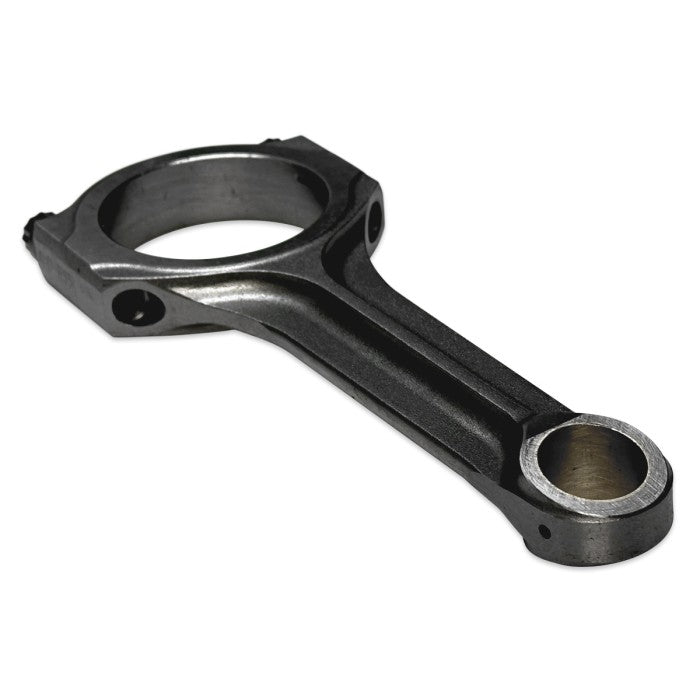

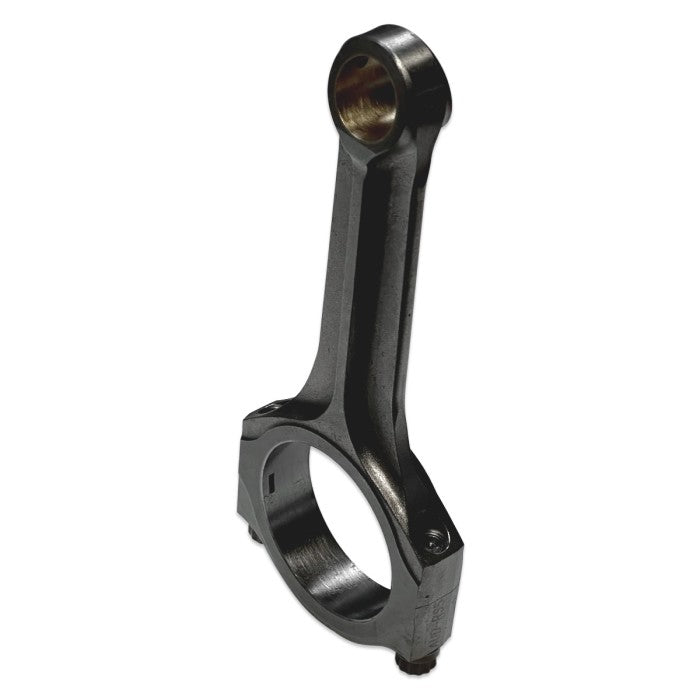

Pauter 153/22 4340 Chrome Moly Cross-Beam Connecting Rod Set is designed and engineered for Audi EA837 3.0T Supercharged Engines. Forged from 4340 Chrome Moly, their unique cross beam design rod structure has proven extremely strong and reliable. Sold as a set of six, balanced end-to-end, ready to install.
Pauter Rods are designed to accept OEM rod bearings and utilize a tapered small end to work with OE pistons with an aluminum-bronze wrist pin bushing. Supplied with ARP 2000 bolts with a rating of 220,000psi tensile strength for substantially more strength than factory rods.
This upgrade is necessary when making large increases in power and engine performance, such as higher boost levels beyond what the factory hardware is designed for, and higher revving past 7,500RPM.
Specifications:
- Pauter Cross-Beam Design Rod Set for Audi 3.0T Supercharged Engines.
- Forged From 4340 CRMO, This Unique Cross Beam Rod Structure has Proven Extremely Strong and Reliable.
- Rated for 200Ft⋅Lb Torque Per Rod at The Engine

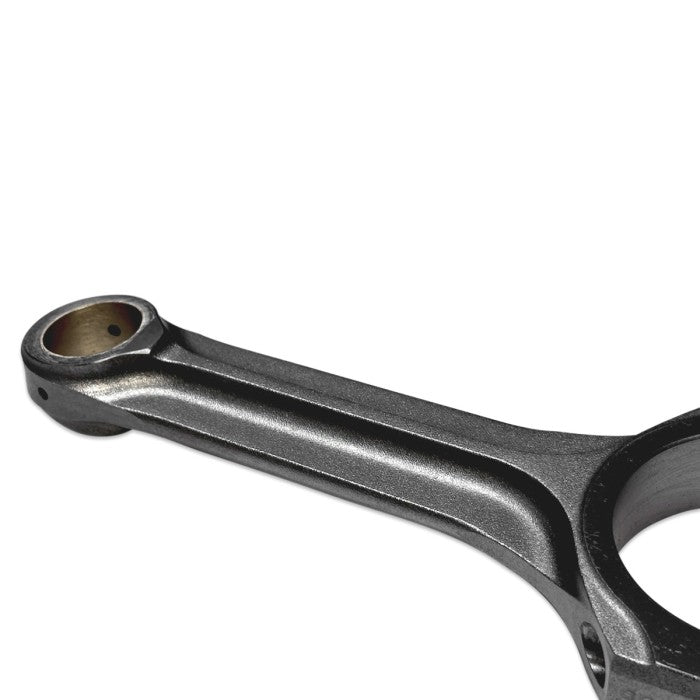

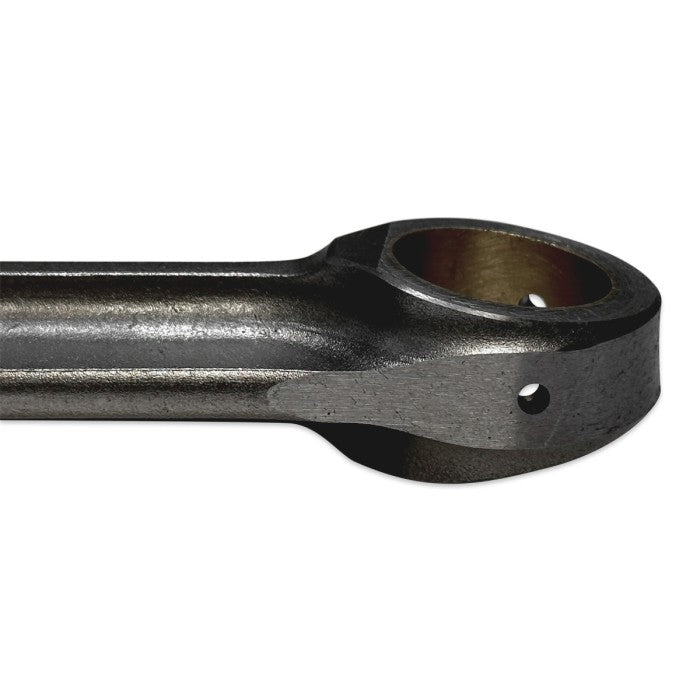

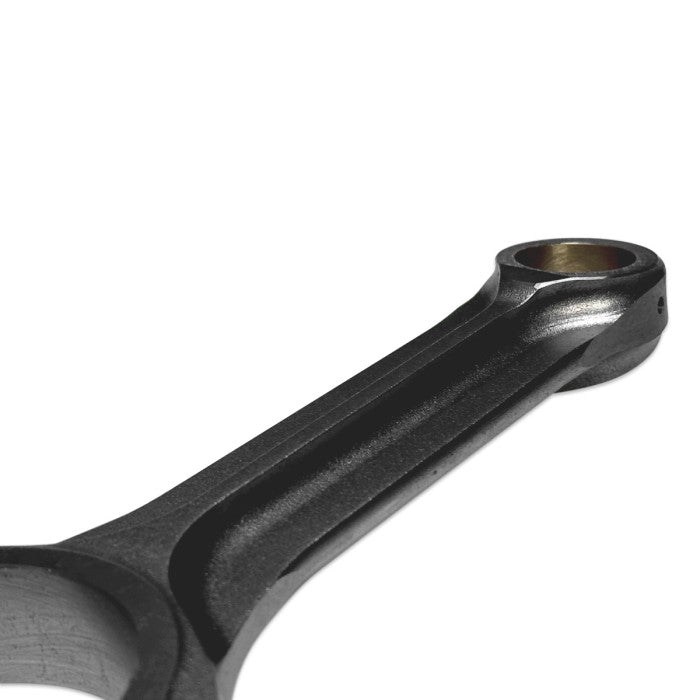

- Tapered Small End to Work with OE Pistons
- Sold as a Set of Six, Balanced End-to-End, Ready to Install

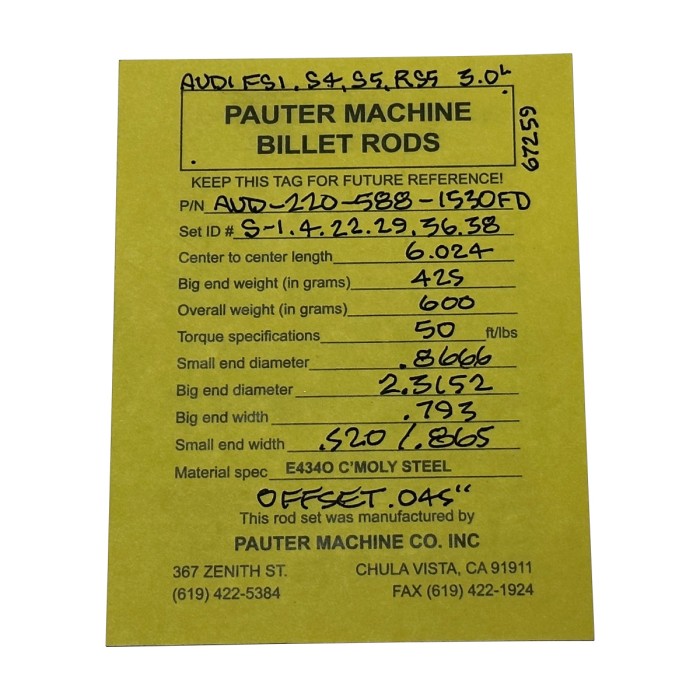

- 153.01mm Long / 22mm Wrist Pin
- E4340 Vacuum Melt Chromoly Forging
- CNC Machined to Precise Tolerances
- Accepts OEM Rod Bearings
- Heat-Treated to Rockwell C36.
- Full Coverage Shot Peened.

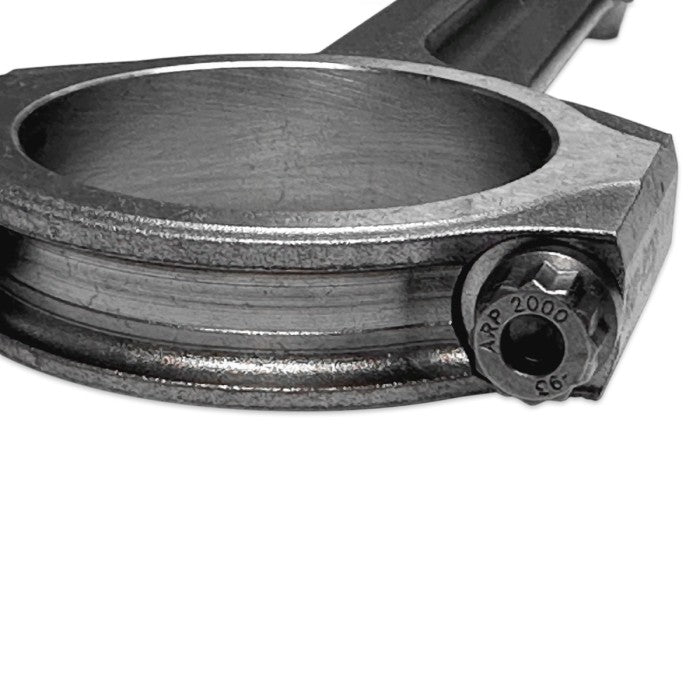

- Rods Supplied with ARP 2000 Bolts Rated at 220,000 PSI Tensile Strength.
- Rods feature aluminum-bronze wrist pin bushings standard.
Design Features:
Fitment
| AudiMake | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | A6 | 2012-2018 | C7/C7.5 | 3.0 TFSI |
| Audi | A7 | 2012-2018 | C7/C7.5 | 3.0 TFSI |
| Audi | A8 | 2011-2018 | D4 | 3.0 TFSI |
| Audi | Q5 | 2009-2017 | B8/B8.5 | 3.0 TFSI |
| Audi | Q7 | 2011-2015 | 4L | 3.0 TFSI |
| Audi | S4 | 2010-2017 | B8/B8.5 | 3.0 TFSI |
| Audi | S5 | 2013-2017 | B8.5 | 3.0 TFSI |
| Audi | SQ5 | 2012-2017 | B8/B8.5 | 3.0 TFSI |
