Dynamic+ Braking Package for Audi B9/B9.5 RS4/RS5

Product Description:

034Motorsport Dynamic+ Braking Packages contain staged upgrade packages specifically tailored for the B9/B9.5 Audi RS4/RS5 2.9 TFSI. The packages contain hand-selected products from the expansive 034Motorsport catalog, put together by the experienced 034Motorsport Engineering Team, to offer staged braking upgrades for the 2.9 TFSI powered Audi RS4 and RS5!

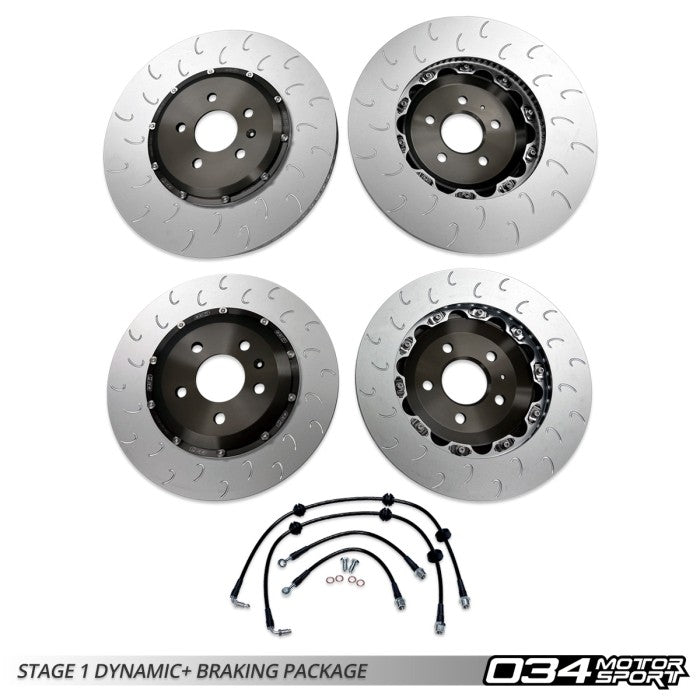

Stage 1 Braking Package:

Want an OEM+ upgrade to improve braking performance while retaining the factory caliper setup? 034Motorsport’s Dynamic+ Stage 1 Braking Package is the ideal upgrade as the package includes our 2-Piece Floating Front and Rear Rotors, which utilize 72 curved vanes to provide superior cooling efficiency and more consistent braking performance while reducing rotational mass over the incorrectly veined, inefficiently cooled factory rotors. Topping it all off is our Stainless Steel Brake Lines, which remove the factory rubber lines that expand and contract under hard braking for robust stainless steel lines, improving brake pedal feel and consistent braking performance.

Features:

• Lightweight Construction (27.3lb 034Motorsport Rotor vs. 27.7lb OE Audi Rotor)
• Floating, 2-Piece Design
• J-slotted Friction Face
• OEM Fitment & Functionality
• 72 Curved Vanes Force Cooling Air through Brake Disc
• Directionally Curved Cooling Vanes vs OE Straight-Veined Rotor
• Replaceable Rotor Rings
• Lower Long-term Maintenance Cost

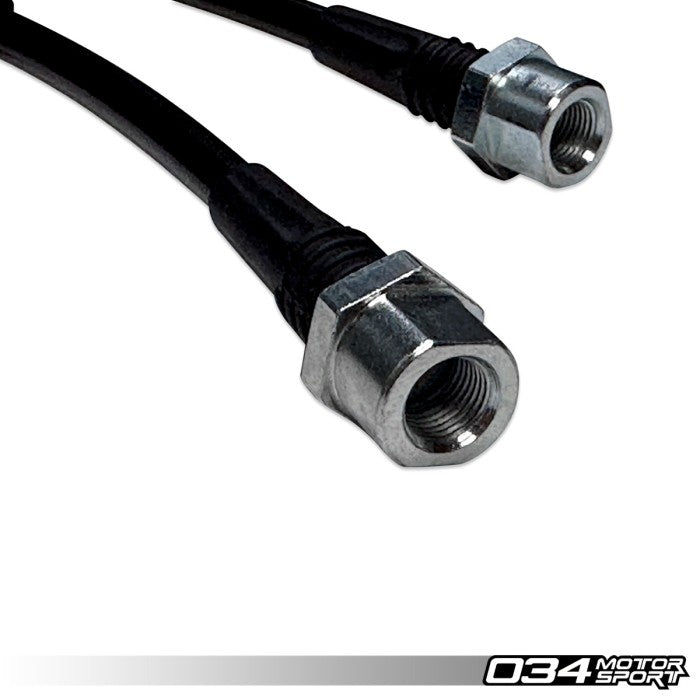

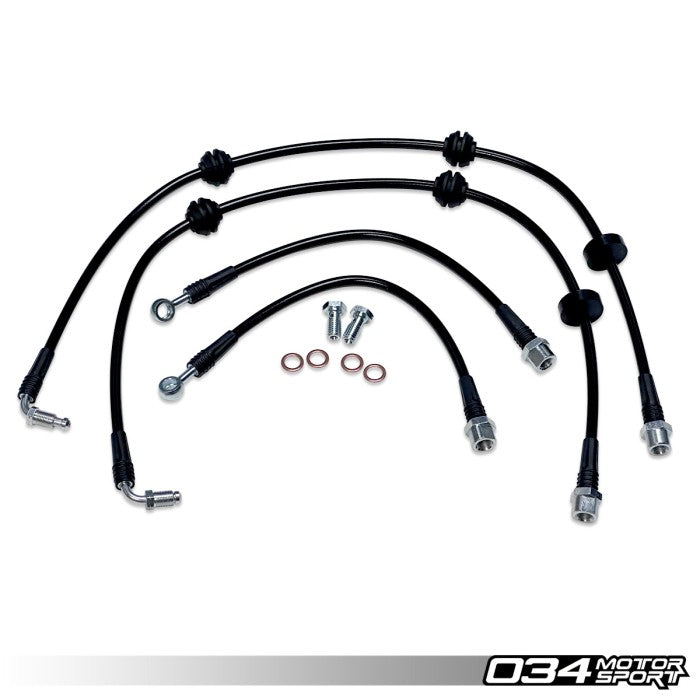

• Replaces Front Brake Hard Line & Hose and Rear Brake Hoses.
• Teflon Lined, Stainless Steel Braided Hose
• Application-Specific Fittings and Lengths
• See More Detailed Product Features on Each Product’s Webpage

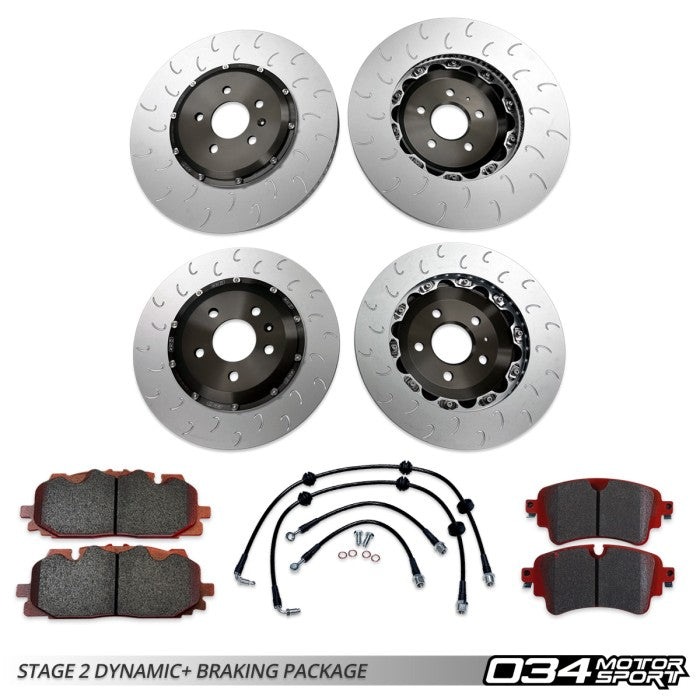

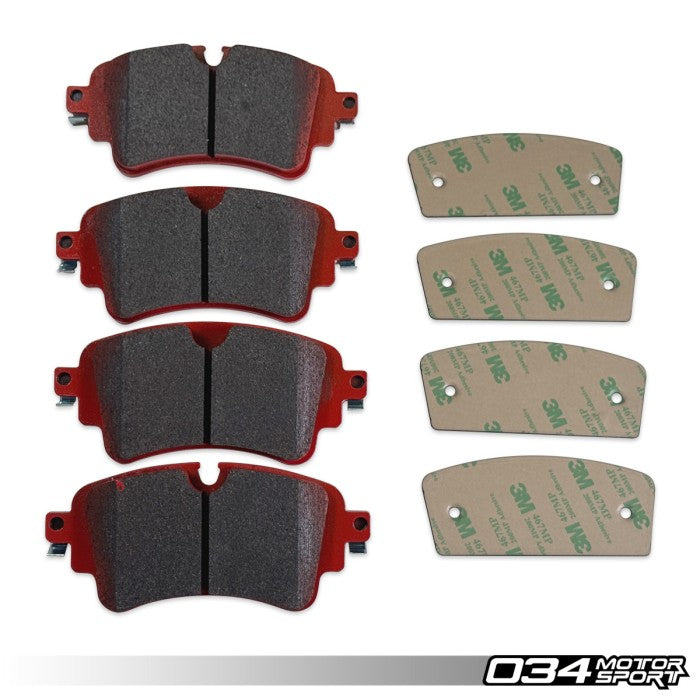

Stage 2 Braking Package:

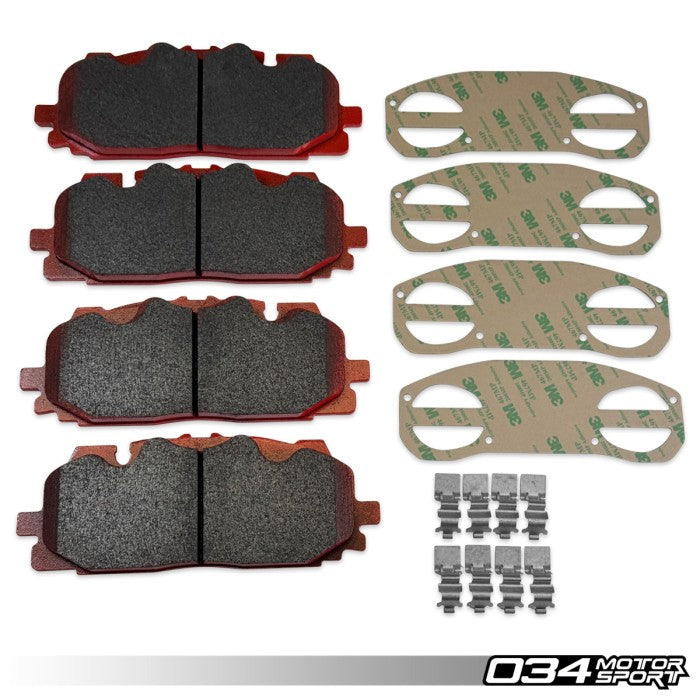

034Motorsport’s Stage 2 Acceleration Package takes things up a notch with the inclusion of our StreetSport Brake Pad upgrade! It is designed for enthusiasts who demand more braking performance over factory pads when driving on the street, light track duties. These brake pads have minimal dust and noise, offer great modulation and control, and are great for the discerning enthusiast who is seeking balanced and strong braking performance in all driving conditions.

Features:

• Low Level Of Brake Dust And Noise.
• Good Coefficient Of Friction, Initial Bite, And Temperature Range Make This Compound Capable For Light Track Conditions.
• Great Modulation And Control Characteristics.
• Great Choice For Occasional Track Vehicles Without The Disadvantages Of Dedicated Track Pads.
• Works As Designed From Ambient Temperature
• Lightweight Construction (27.3lb 034Motorsport Rotor vs. 27.7lb OE Audi Rotor)
• Floating, 2-Piece Design
• J-slotted Friction Face
• OEM Fitment & Functionality
• 72 Curved Vanes Force Cooling Air through Brake Disc
• Directionally Curved Cooling Vanes vs OE Straight-Veined Rotor
• Replaceable Rotor Rings
• Lower Long-term Maintenance Cost
• Replaces Front Brake Hard Line & Hose and Rear Brake Hoses.
• Teflon Lined, Stainless Steel Braided Hose
• Application-Specific Fittings and Lengths
• Manufactured to Meet or Exceed DOT Test and Construction Standards, But Are Not "DOT Certified"
• See More Detailed Product Features on Each Product’s Webpage

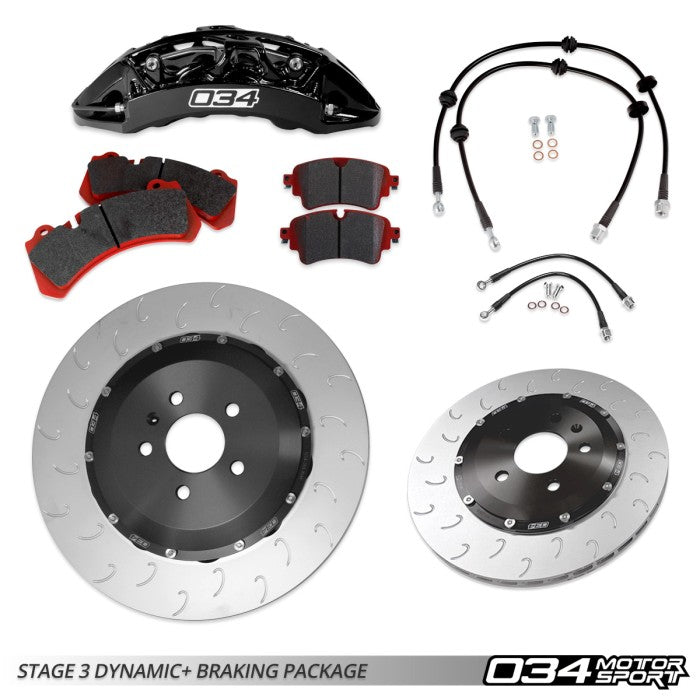

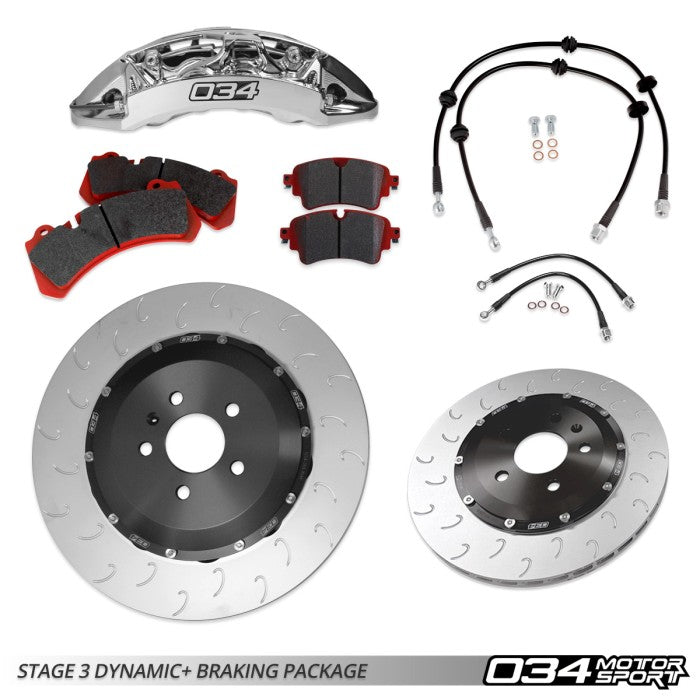

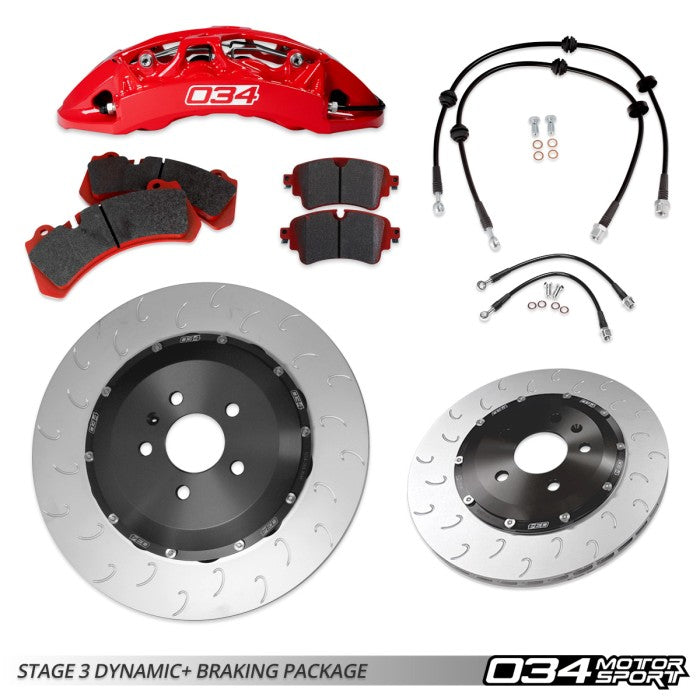

Stage 3 Braking Package:

If Stage 2 wasn’t enough, we offer a balls-to-the-wall 034Motorsport Stage 3 Braking Package that includes our tried-and-true RS+ Big Brake Kit! This kit features our massive 8-piston caliper setup, built from the ground up to ensure proper brake balance for superior stopping power, enhanced braking modulation, and long-term durability. This comprehensive package was engineered to offer superior stopping power, enhanced brake modulation, and long-term durability, making it the ideal choice for enthusiasts who demand the best from their braking system.

• Brake Caliper Design:
  • 8-Piston, CNC Machined Monoblock Billet Calipers
  • Lightweight, High-Strength Construction (Caliper + Bracket + Pads + Hose)
    • Factory B9 RS4/RS5: 16.50 Lbs
    • 034 RS+: 13.5 Lbs
  • Increased Brake Pad Area
    • B9 S4/SQ5/RS5 OE: 9,732 mm²
    • 034 RS+: 9,943 mm²
  • Readily Available Brake Pads
    • Brembo GT6 Caliper Pad Shape
      • 57mm Radial Pad Depth
  • Three Finish Options
    • Nickel Plated
    • RS Red
    • Black
• 2-Piece Rotor Design:
  • Larger Front Brake Rotors
    • OE: 375x36mm
    • 034 RS+: 390x34mm
  • Motorsport-Inspired Design
    • Floating, 2-Piece Design
    • Aerospace Grade Aluminum Hats
    • CM-250 Special Alloy Rotor Rings
    • J-slotted Friction Face
    • 72 Curved Vanes Force Cooling Air through Brake Disc
    • Floating Bobbins Mounting System
    • Reduced Unsprung Weight
  • Lightweight Design
    • Front OE RS4/RS5 (375x36mm): 27.7 lbs
    • 034 OEM Front 2-Piece (350x34mm): 27.3 lbs
    • Front 034 RS+ (390x34mm): 25.3 lbs
    • Rear OE RS4/RS5 (330x22mm): 16.65 lbs
    • Rear 034 RS+ (330x22mm): 12.15 lbs

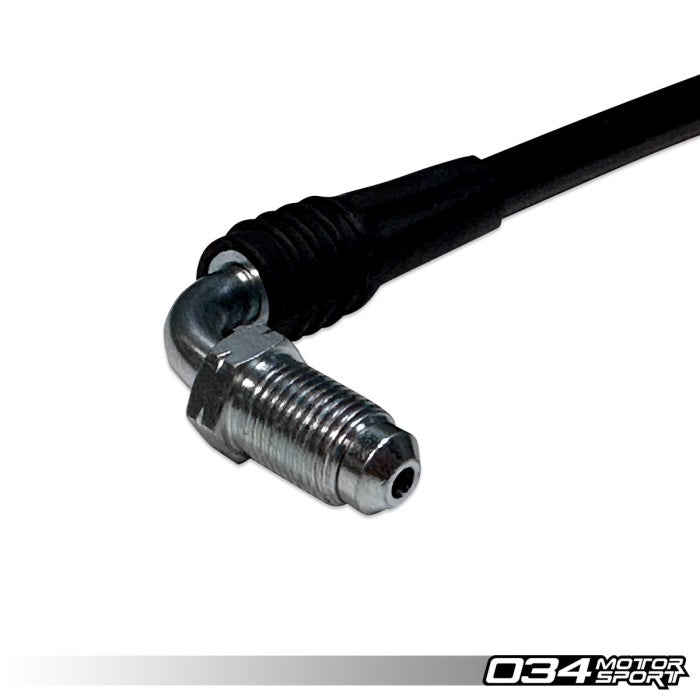

  • Stainless Steel Brake Lines
    • Teflon Lined, Stainless Steel Braided Hose
    • Application-Specific Fittings and Lengths
    • Manufactured to Meet or Exceed DOT Test and Construction Standards, But Are Not "DOT Certified"

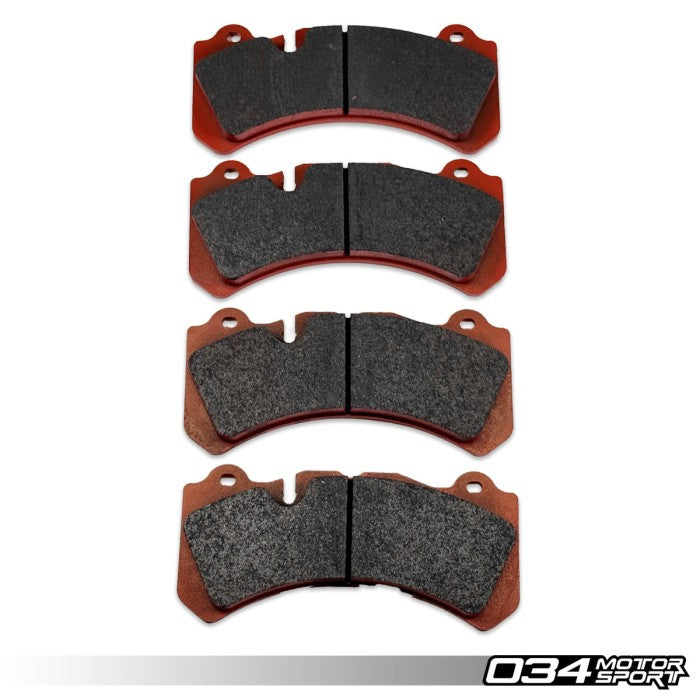

• StreetSport Brake Pad Design:
  • Dust and Noise
    • Low Level of Brake Dust and Noise
  • Performance
    • Good Coefficient of Friction, Initial Bite, and Temperature Range
    • Capable for Light Track Conditions
    • Great Modulation and Control Characteristics
    • Great for Occasional Track Vehicles without Disadvantages of Dedicated Track Pads
  • Temperature
    • Works as Designed from Ambient Temperature
  • Material
    • Semi-Metallic
  • Effective Temperature Range
    • Ambient - 1112°F (600°C)
  • Average Mu
    • 0.34 ~ 0.37
  • Recommend Use
    • Street/Light Track Use

**Please Note: Type III hard anodizing of aluminum is considered as a functional surface coating process. While we always aim for color consistency, color variations may exist from batch to batch due to the nature and variables in the anodizing process.
