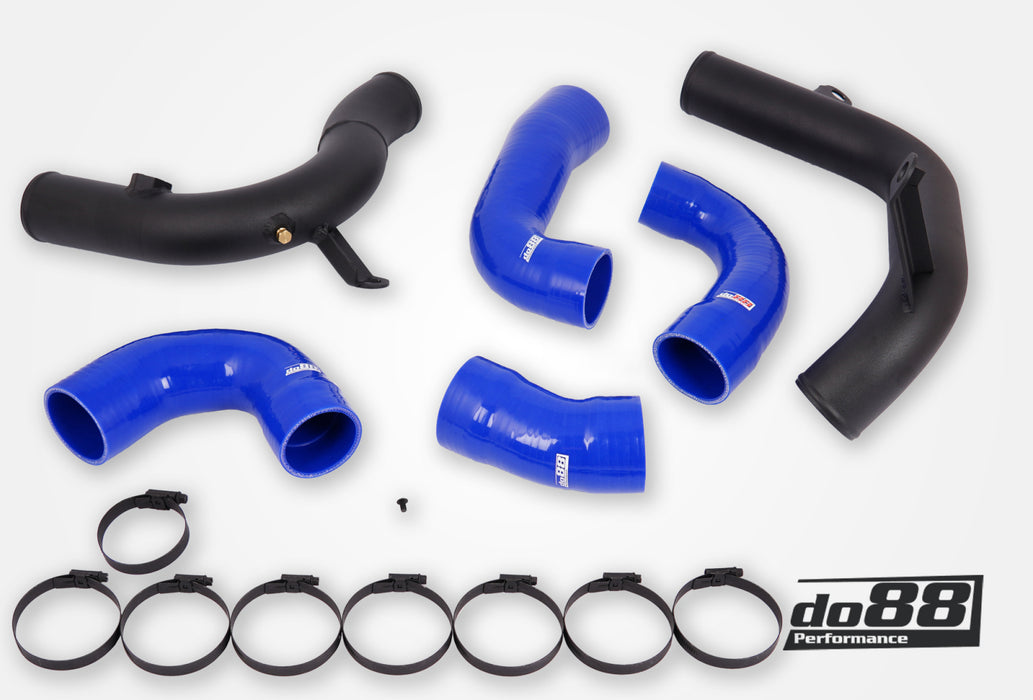

The best VAG 20 TSI EA888 Gen4 performance intercooler pipe kit on the market
This kit is for you with significant horsepower goals that want to upgrade to the absolute best Our pressure pipe has considerably better airflow than the stock pipe This has been verified in several tests both in car and in our own SuperFlow SF1020 flow bench
Advantages with do88 pressure pipes OEM pipes
Air flow at 01bar/145psi pressure drop 364CFM 280CFM do88 30 higher See diagram below
Designed to handle high pressure and temperatures
The pipe has one methanol injection connection 1/8 27 NPT The pipe is delivered with blanking plug in this connection
Fits all cars in list below
Fits
VW Golf MK8
Model years 2020
Model GTI R Clubsport ED45
Engine 20 TSI
Audi A3 / S3 8Y
Model years 2020
Engine 20 TSI
SEAT Len MK4
Model years 2020
Engine 20 TSI
Skoda Octavia NX
Model years 2019
Engine 20 TSI
Cupra Formentor 5FF
Model years 2020
Engine 20 TSI
The pressure pipe is manufactured in 63mm 25Ó mandrel bent seamless aluminium pipe
Always remember that the OEM intercooler pipes and hoses was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM pipes and hoses donÕt have the performance you need So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes
do88 pressure pipes comes with all hardware necessary for installation
When you order this kit there is three choice that needs to me made
1 Engine
Choose which stock power you car has 245hp or 300hp Cars with 300hp has BOVflange on the pressure pipe located below the throttle body
2 Hose color
Three different hose colors are avalible Blue / Black / Red There are no performance difference between the different colors choose which color you think will be best for your car
3 Intercooler
Select which intercooler you have on your car OEM or do88 Performance intercooler
Click here for installation guide
OEMreference
5WA145828E 5WA145828F 5WA145840D 5WA145840E 5WA145832 5WA145832C 5WA145834 5WA145770D 5WA145770C 5WA145838
This diagram shows the charge air flow at different pressure drops of do88 pressure pipes compared to OEM pipes
