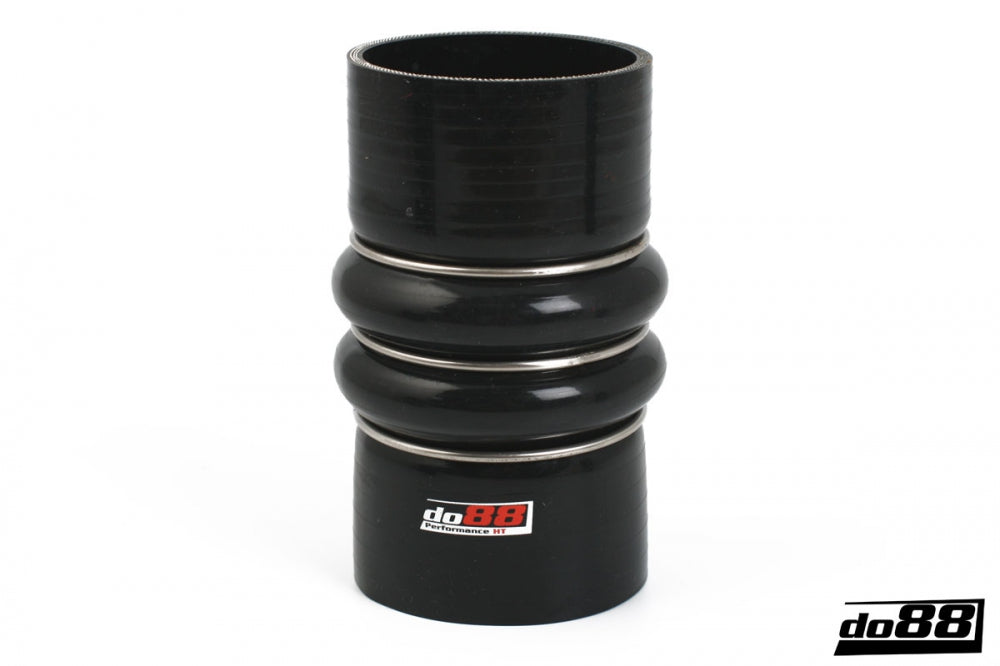

2Humps Hose CAC hose
These hoses are entirely manufactured in high quality silicone for best finish and durability With three to five layers of armory depending of the inner diameter the hoses withstand high pressure rates and high temperatures for a long time The cars original hoses are often manufactured in rubber that not seldom cracks from age
These hoses are especially developed to absorb movements flexing and vibrations A counterbalance between two relative objects not moving in the same direction They will allow a movement in any direction without folding or putting the connections at stress
This type of hose is often called CAC hose Charge Air Cooler Hose Since this hose is often used to connect turbo to intercooler and intercooler to the engine manifold
Intended use
Charge air applications turbo intercooler compressor
Suction applications air filter inlets
Visualization of bending
Visualization of compression
Possible installation angle | 025 |
Inner diameter mm | 80 mm |
Inner diameter inch | 3 1/8 " |
Length | 150 mm |
Color | Black |
Wall thickness | 4 mm |
Temperature range | 40 to 250 C |
Outer diameter | 88 mm |
Reinforcement | 3 layers |
Material | High quality silicone rubber / Aramid fabric And 3 steel rings |
