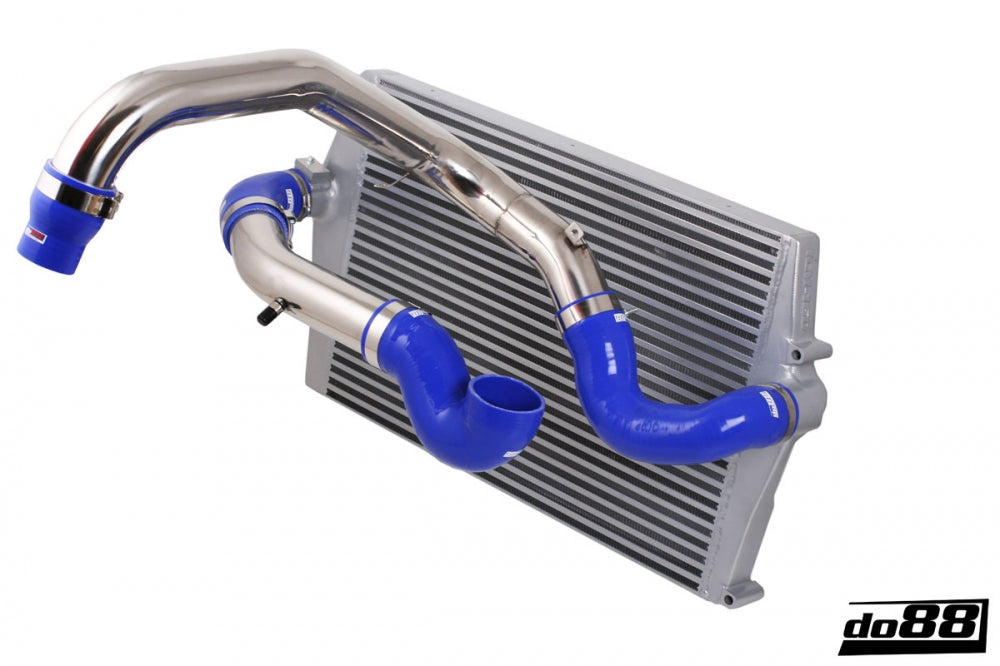

The best Volvo S60 amp V70 200007 performance intercooler kit on the market This BigPack includes both do88 performance intercooler and pipe kit This kit is for you with high horsepower goal and wants to upgrade to the absolute best ÒOnlyÓ changing to our performance intercooler is a Big improvement but together with our pressure pipe kit the improvement is Huge Our pressure pipes has considerably better airflow than the stock pipes this we have verified in several tests both in car and in our own SuperFlow SF1020 flow bench Significant advantages with do88 BigPack OEM intercooler/pipes Core volume 13068m3 8659cm3 do88 is 51 larger Air flow at 015bar/218psi pressure drop 272CFM 247CFM do88 10 higher See diagram below Post intercooler air temperature at same conditions 30C 54C do88 24C lower See diagram below Fits all cars in list below 24C lower IAT and 10 better Šr flow is an Big improvement BigPack includes a full aluminum performance intercooler and a complete 25Ó pipe kit and silicone hoses This BigPack replaces everything between the turbo outlet and the throttle body this why it drastically improves the airflow / cooling performance compared to the original do88 performance intercooler are an allaluminum construction with cad designed flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop The pressure pipes are manufactured in 25Ó/275" mandrel bent aluminium pipes Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement These hoses can handle very high temperature and pressure Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler donÕt have the performance you need So only after engine software tune do88 BigPack will give a performance increase over the OEM intercooler A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better But actually the do88 BigPack are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved do88 BigPack comes with all hardware necessary for installation Included parts in this BigPack 1 Performance intercooler 2 Intercooler installation accessories 3 Two pressure pipes 4 Four silicone hoses 5 Four Tbolt hose clamps 6 Five standard hose clamps |
 |
|
When you order this BigPack there are two choices that needs to me made 1 Color Three different hose colors are avalible Blue / Black / Red There are no performance difference between the different colors choose which color you think will be best for your car 2 Year model Choose your cars year model 20002002 or 20032007 |
| Fits |
Volvo S60 Year models 20012009 Engine 20T / 23T / 24T / T5 Volvo S60R Year models 20062007 Engine 299hk R |
Volvo V70 Year models 20002007 Engine 20T / 23T / 24T / T5 Volvo V70R Year models 20062007 Engine 299hk R Volvo XC70 Year models 20002007 Engine 23T / 24T / 25T / T5 |
This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes
This diagram shows the charge air temperature post do88 performance intercooler compared to OEM intercooler
All tests are performed with test equipment with the exact same conditions for both do88 performance intercooler and OEM intercooler and can therefore be used for comparison of them
