The best VAG 20 TSI EA888 Gen4 performance intercooler kit on the market

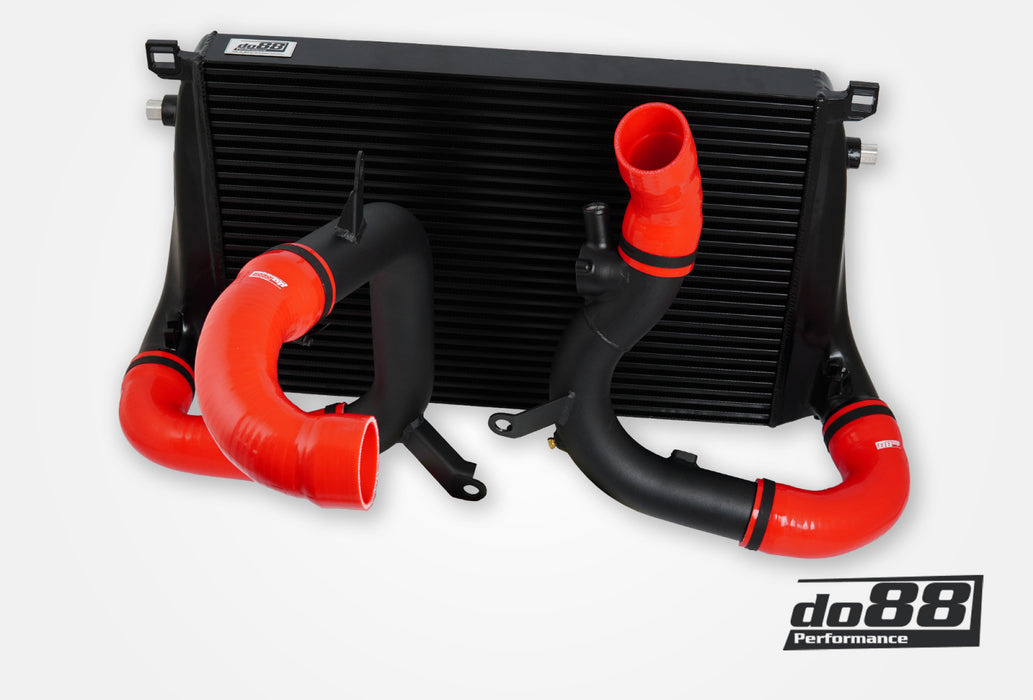

This BigPack includes both do88 performance intercooler and pipe kit
This kit is for you with high horsepower goals and want to upgrade to the absolutly best Just changing to our performance intercooler is a big improvement together with our pressure pipe kit the improvement is huge Our pressure pipes have considerably better airflow than stock piping verified by several tests both in car and in our own SuperFlow SF1020 flow bench
Advantages with do88 BigPack OEM intercooler/pipes
Greater core volume 15811cm3 9056cm3 75 larger
Larger active cooling area 2774 cm2 vs 2587 cm2 7 bigger
Air flow at 015bar/218psi pressure drop 332 CFM 244 CFM do88 36 higher
Peak powergain of 12hp and peak torque gain of 14 Nm Measured on VW Golf GTI Clubsport Edition 45 2021 with stock software
Post intercooler air temperature at same conditions 23C 35C do88 12C lower
The pipe has one methanol injection connection 1/8 27 NPT The pipe is delivered with blanking plug in this connection
Fits
VW Golf MK8
Model years 2020
Model GTI R Clubsport ED45
Engine 20 TSI
Audi A3 / S3 8Y
Model years 2020
Engine 20 TSI
SEAT Len MK4
Model years 2020
Engine 20 TSI
Skoda Octavia NX
Model years 2019
Engine 20 TSI
Cupra Formentor 5FF
Model years 2020
Engine 20 TSI
The do88 performance intercooler is an allaluminum construction With CADdesigned flow optimized cast end tanks along with an optimized core design it achieves the best possible cooling efficiency combined with lowest possible pressure drop
The pressure pipes are manufactured in 25Ó mandrel bent seamless aluminum pipes
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement These hoses can handle very high temperature and pressure
Always remember that the OEM intercooler was designed for the power level the car was built for originally A power increase or even very hard use of the car in standard version may cause the OEM intercooler not having the performance that you need So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved
do88 BigPack comes with all hardware necessary for installation
When you order this BigPack there are two choices that has to me made
1 Engine
Choose which stock power you car has 245hp or 300hp Cars with 300hp has BOVflange on the pressure pipe located below the throttle body
2 Hose color
Three different hose colors are avalible Blue / Black / Red There are no performance difference between the different colors choose which color you think will be best for your car
Click here for intercooler installation guide
Click here for pressure pipe installation guide
OEMreference
5Q0145803AE 5Q0145803AB 5Q0145803AC 5WA145828E 5WA145828F 5WA145840D 5WA145840E 5WA145832 5WA145832C 5WA145834 5WA145770D 5WA145770C 5WA145838
