The best AUDI SEAT SKODA VW 18 / 20 TSI MQB performance intercooler kit on the market
This BigPack includes both do88 performance intercooler and pipe kit
This kit is for you with high horsepower goals and want to upgrade to the absolutly best Just changing to our performance intercooler is a big improvement together with our pressure pipe kit the improvement is huge Our pressure pipes have considerably better airflow than stock piping verified by several tests both in car and in our own SuperFlow SF1020 flow bench
Advantages with do88 BigPack OEM intercooler/pipes
Core volume 15347 cm3 7719 cm3 do88 is 99 larger
Air flow at 015bar/218psi pressure drop 325 CFM 239 CFM do88 36 higher See diagram below
Post intercooler air temperature at same conditions 24C 36C do88 12C lower See diagram below
Fits
VW Golf MK7 MK75
Model years 20132020
Model GTI R Clubsport ED40 Golf Sportwagen
Engine 18 TSI 20 TSI
VW Passat 3G
Model years 2015
Engine 18 / 20 TSI
VW Tiguan MK2
Model years 2016
Engine 20 TSI
VW Arteon
Model years 2017
Engine 20 TSI
VW Jetta GLI MK7
Model years 2019
Engine 20 TSI
Audi A3 / S3 8V
Model years 2012
Engine 18 TFSI 20 TFSI
Note The plastic radiator/intercooler support frame will need trimming / modifications
Click here to read the trimming instruction
Audi TT / TTS 8S
Model years 2015
Engine 18 TFSI 20 TFSI
Note The plastic radiator/intercooler support frame will need trimming / modifications
SEAT Len / Cupra MK3
Model years 2013
Engine 18 TSI 20 TSI
Note The plastic radiator/intercooler support frame will need trimming / modifications
Click here to read the trimming instruction
Skoda Octavia / VRS MK3
Model years 2013
Engine 18 TSI 20 TSI
Note The plastic radiator/intercooler support frame will need trimming / modifications
Skoda Superb B8
Model years 2015
Engine 18 TSI 20 TSI

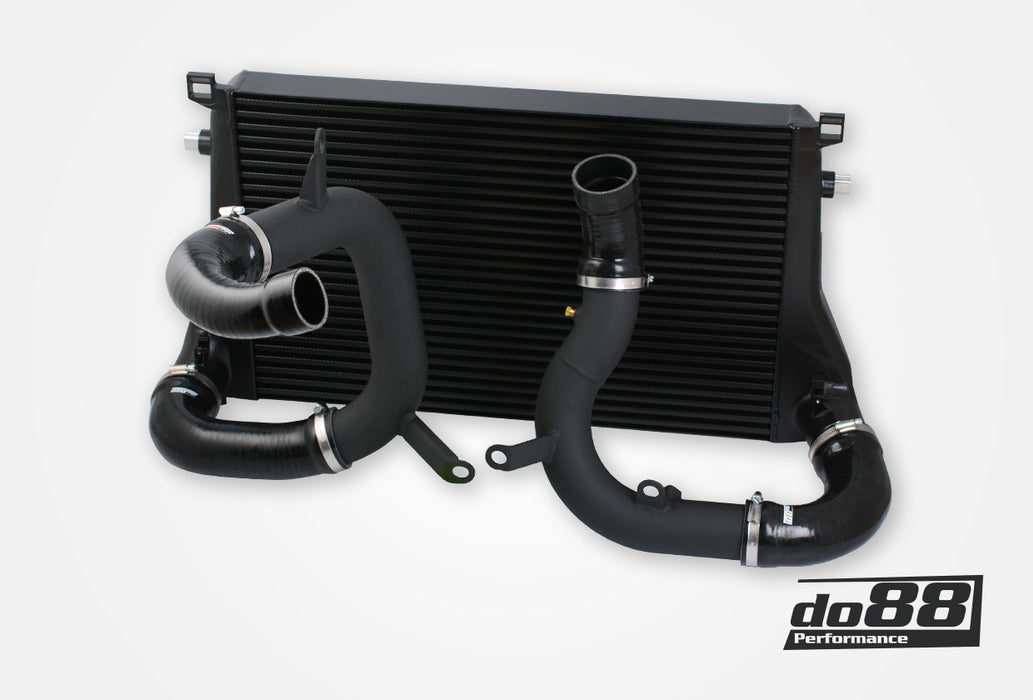

The BigPack includes a full aluminum performance intercooler and a complete 25Ó pipe kit and silicone hoses This BigPack replaces everything between the turbo outlet and the throttle body hence the drastical improvement in airflow and cooling performance
The do88 performance intercooler is an allaluminum construction With CADdesigned flow optimized cast end tanks along with an optimized core design it achieves the best possible cooling efficiency combined with lowest possible pressure drop
The pressure pipes are manufactured in 25Ó mandrel bent seamless aluminum pipes
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement These hoses can handle very high temperature and pressure
Always remember that the OEM intercooler was designed for the power level the car was built for originally A power increase or even very hard use of the car in standard version may cause the OEM intercooler not having the performance that you need So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved
do88 BigPack comes with all hardware necessary for installation
When you order this BigPack there is one option that has to me made
Hose color
Three different hose colors are avalible Blue / Black / Red There are no performance difference between the different colors choose which color you think will be best for your car
Click here for intercooler installation guide
Click here for pressure pipe installation guide
OEM reference
5Q0145803N 5Q0145803P 5Q0145828 5Q0145832 5Q0145832D 5Q0145834 5Q0145838 6C0145838A 5Q0145840 5Q0145770B 6C0145770A
This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes
This diagram shows the charge air temperature post do88 performance intercooler compared to OEM intercooler
All tests are performed with test equipment with the exact same conditions for both do88 performance intercooler and OEM intercooler and can therefore be used for comparison of them
