The best Toyota Yaris GR performance intercooler kit on the market
This BigPack includes both do88 performance intercooler and pipe kit
This kit is for you with high horsepower goals and want to upgrade to the absolutly best Just changing to our performance intercooler is a big improvement together with our pressure pipe kit the improvement is huge Our pressure pipes have considerably better airflow than stock piping verified by several tests both in car and in our own SuperFlow SF1020 flow bench
Advantages with do88 BigPack
Greater core volume 13971 cm3 vs 7320 cm3 91 bigger
Larger active cooling area 2451 cm2 vs 913 cm2 168 bigger
Larger inlet/outlet connections 63mm 2 _Ó vs 45mm 1 _Ó 95 lager area
Air flow at 0175bar/254psi pressure drop 284 CFM vs 203 CFM 40 higher
Peak powergain of 26 whp together with do88 turbo inlet Measured on car with TTE400 turbo Syvecs ECU etc
Lower post intercooler air temperature at same conditions 25C 50C 25C lower

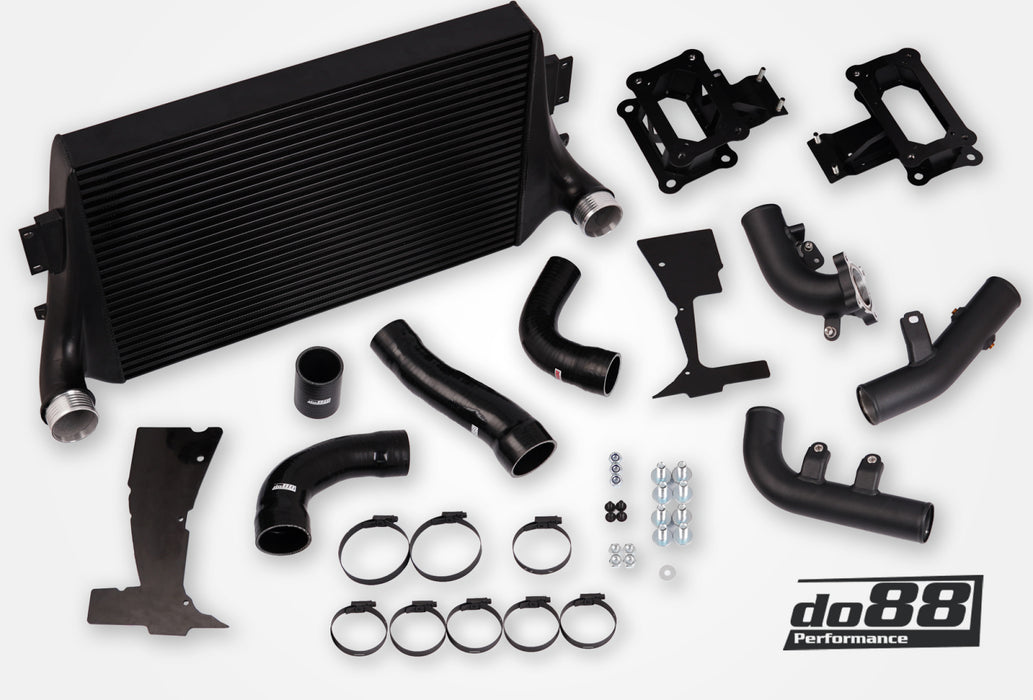

The BigPack includes a full aluminum performance intercooler and a complete 2 and 2 1/8Ó pipe kit and silicone hoses This BigPack replaces everything between the turbo outlet and the throttle body hence the drastical improvement in airflow and cooling performance
The do88 performance intercooler is an allaluminum construction With CADdesigned flow optimized cast end tanks along with an optimized core design it achieves the best possible cooling efficiency combined with lowest possible pressure drop
The pressure pipes are manufactured in 2 and 2 1/8Ó mandrel bent seamless aluminum pipes
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement These hoses can handle very high temperature and pressure
Always remember that the OEM intercooler was designed for the power level the car was built for originally A power increase or even very hard use of the car in standard version may cause the OEM intercooler not having the performance that you need So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler
do88 BigPack comes with all hardware necessary for installation
