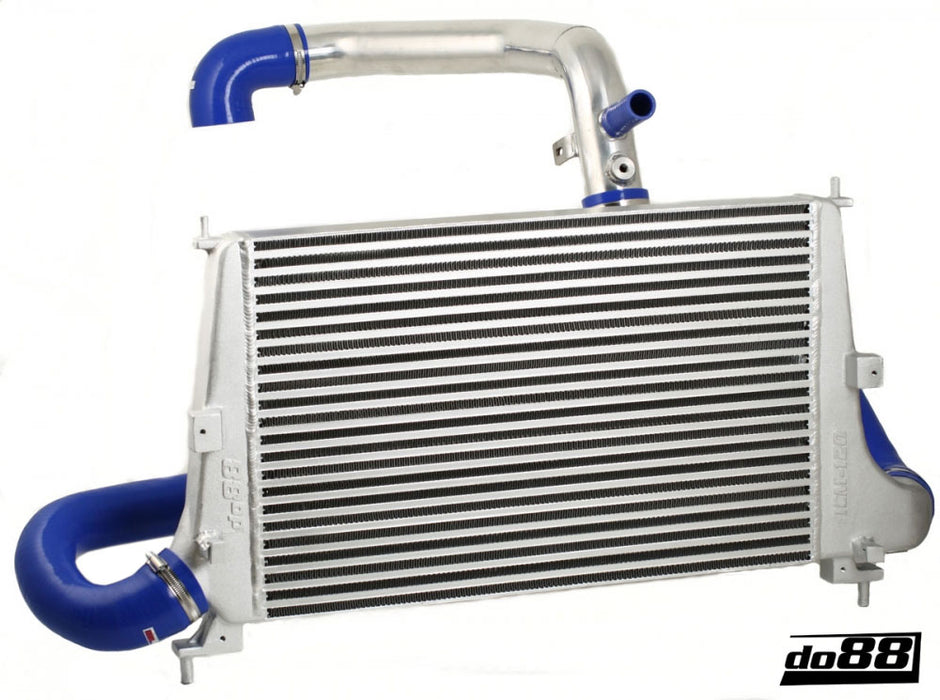

BigPack SAAB 9-5 98-00, Blue hoses

This is a selfdesigned performance intercooler and RIPkit for SAAB 95

Significant advantages with do88 performance intercooler OEM intercooler
Core volume 11803cm3 6379cm3 do88 is 85 larger

Air flow at 015 bar / 218psi pressure drop 268CFM 192CFM do88 40 higher

Post intercooler air temperature at same conditions 32C 53C do88 21C / 40 lower

Airflow optimized intercooler pipes with CNCmachined sensor fastenings

Special designed silicone hoses with 34 layers of armory for optimal fitment and durability

High quality stainless hose clamps

Delivered with mounting instructions screws washers nuts and everything necessary for an easy straightforward installation

CADdesigned CFDanalyzed intercooler end tanks

Airflowverified in the SuperFlow SF1020 flow bench

Fits all cars in list below

This intercooler is constructed to deliver the best cooling efficiency during tough conditions Exclusively manufactured in aluminum with continuous welds it guarantees reliability and endurance when you really need it The increased core volume improves cooling efficiency and lower the intake air temperature Naturally this being a do88 performance product we have executed thorough severe and continuous tests developing this product to ensure best performance Not one compromise has been made This intercooler is immensely optimized to the given space for an easy dropinfitment

The 85 increased and 40 core volume is an achievement we are proud of Its a remarkable difference Perceivable to say the least The engine pulls better all over the revs and withstands repeated full throttle runs without building heat The perception of an intercooler being something to upgrade only after a major engine tune is false yet widely spread among customers and car people During hot Swedish summer days at repeated pulls inspired driving or even at ordinary driving in a hotter climate area it doesnt take much of an effort from the engine to generate dangerously high inlet temperatures Ð even on a standard nontuned car The cooling capacity with an OEMintercooler is in many cases inferior which will affect the usable power outtake The heat has to be eliminated or else the promised output will be decreased as you start giving gas With our intercooler you can rest assured the power is there at all times

The RIPkit included in this BIGPACK is manufactured from 25 Ò extruded aluminum piping mandrel bent to desired shape Compulsory for all of our RIPkits is them being constructed with smooth radiuses forgiving transitions and as big inner diameter as possible All in order to achieve as high airflow as possible and reduced pressure drop

This product comes with everything necessary for an easy installation without the need for cutting or in any way changing the cars original shape Bolts nuts brackets and mounting instructions is of course included

Included parts in this BIGPACK

1. Intercooler
2. Intercooler piping
3. Silicone hoses 4 pcs
4. Hose clamps tbolt 5 pcs
5. Hose clamps stainless 34 pcs

When ordering this BIGPACK there are two choices that has to me made in the drop list above

1 Color
Choose what color you would like in your hoses Ð blue black or red There are no difference in performance between the three

2 Year model
Year 19982000
Year 20012009

Fits

SAAB 95
Year models 19982009
Engine All four cylinder turbo except V6 and Diesel
20T/23T/Aero B205 B235
Does not fit cars with automatic transmission See separate product

If you have a MY 19982001 some modifications may be required
The headlight housing may have to be trimmed to not interfere with the ACcondenser
The sensor attached behind the intercooler pipe may have to be slightly relocated

OEM reference

4966735
4966701
5191770
7591936
