The best SAAB NG95 Turbo4 Turbo4 BioPower performance intercooler kit on the market
This BigPack includes both do88 performance intercooler and pipe kit
This kit is for you with high horsepower goals and want to upgrade to the absolutly best Just changing to our performance intercooler is a big improvement together with our pressure pipe kit the improvement is huge Our pressure pipes have considerably better airflow than stock piping verified by several tests both in car and in our own SuperFlow SF1020 flow bench
Advantages with do88 BigPack OEM intercooler/pipes
Core volume 14048 cm3 7735 cm3 do88 is 81 larger
Larger frontal cooling area 2810cm2 2417cm2 16 larger
Air flow at 015bar/218psi pressure drop 280 CFM 230 CFM do88 22 higher See diagram below
Post intercooler air temperature at same conditions 22C 35C do88 13C lower See diagram below
Fits
SAAB NG95
Year models 20102011
Engine 20T Turbo4 Turbo4 BioPower

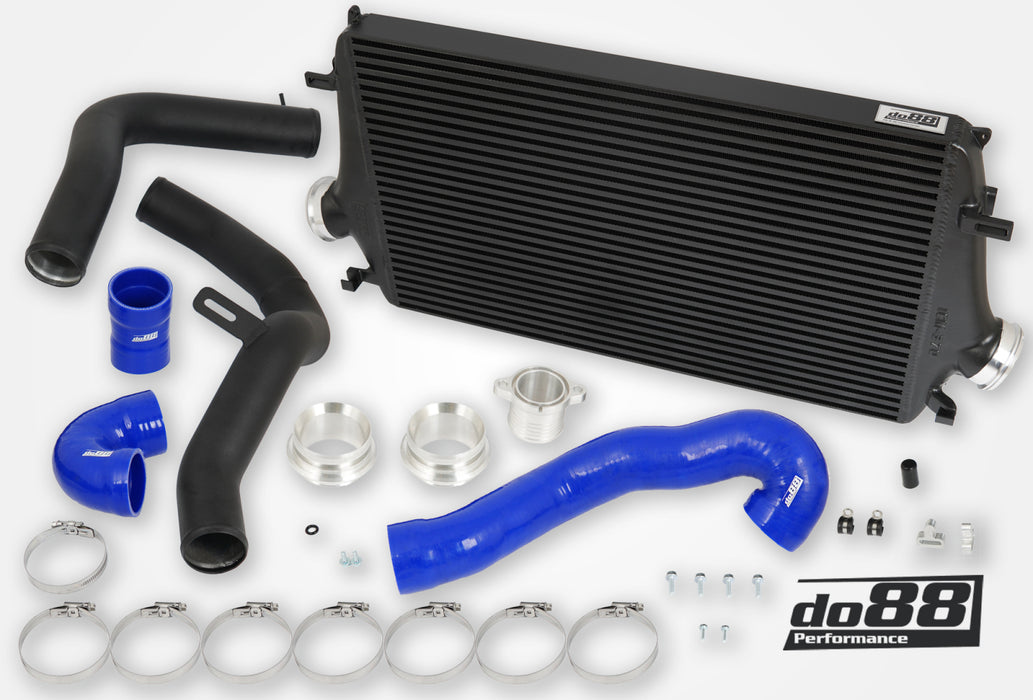

The BigPack includes a full aluminum performance intercooler and a complete 25Ó pipe kit and silicone hoses This BigPack replaces everything between the turbo outlet and the throttle body hence the drastical improvement in airflow and cooling performance
The do88 performance intercooler is an allaluminum construction With CADdesigned flow optimized cast end tanks along with an optimized core design it achieves the best possible cooling efficiency combined with lowest possible pressure drop
The pressure pipes are manufactured in 25Ó mandrel bent seamless aluminum pipes
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement These hoses can handle very high temperature and pressure
Always remember that the OEM intercooler was designed for the power level the car was built for originally A power increase or even very hard use of the car in standard version may cause the OEM intercooler not having the performance that you need So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved
do88 BigPack comes with all hardware necessary for installation
When you order this BigPack there is one option that has to me made
Hose color
Three different hose colors are avalible Blue / Black / Red There are no performance difference between the different colors choose which color you think will be best for your car
Click here for intercooler installation guide
Click here for pressure pipe installation guide
OEM reference
13241751 1302647 13220160 13334020 13306046 13334019 13220167
This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes
This diagram shows the charge air temperature post do88 performance intercooler compared to OEM intercooler
All tests are performed with test equipment with the exact same conditions for both do88 performance intercooler and OEM intercooler and can therefore be used for comparison of them
