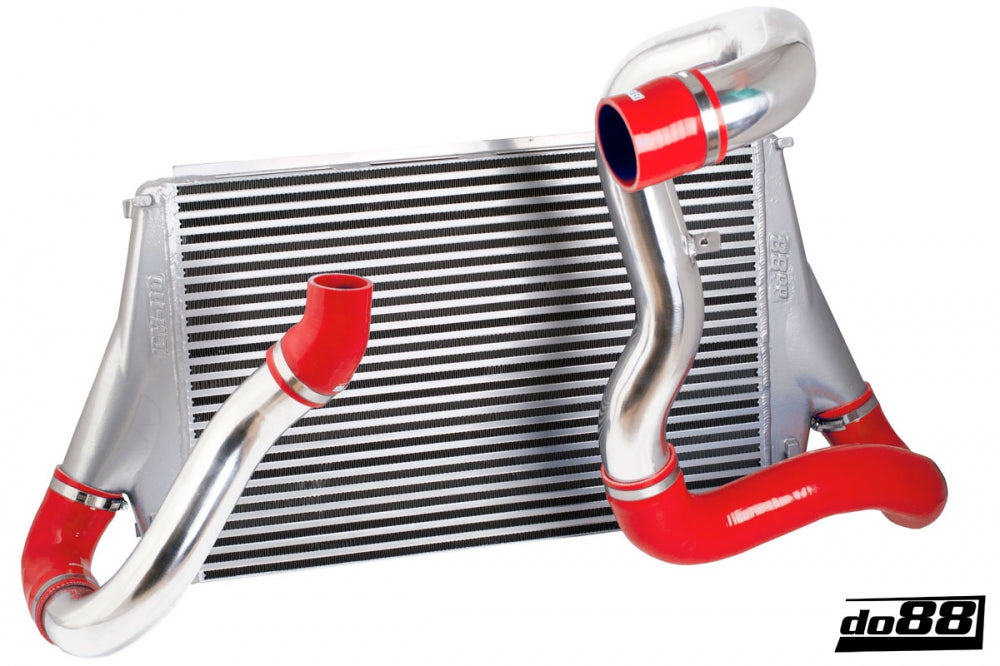

The best SAAB 93 28T V6 performance intercooler kit on the market This BigPack includes both do88 performance intercooler and pipe kit This kit is for you with high horsepower goals and want to upgrade to the absolutly best Just changing to our performance intercooler is a big improvement together with our pressure pipe kit the improvement is huge Our pressure pipes have considerably better airflow than stock piping verified by several tests both in car and in our own SuperFlow SF1020 flow bench Significant advantages with do88 BigPack OEM intercooler/pipes Core volume 13770cm3 7725cm3 do88 is 78 larger Air flow at 015bar/218psi pressure drop 315CFM 273CFM do88 15 higher See diagram below Post intercooler air temperature at same conditions 36C 57C do88 21C lower See diagram below Fits all cars in list below The BigPack includes a full aluminum performance intercooler and a complete 25Ó / 275" pipe kit and silicone hoses This BigPack replaces everything between the turbo outlet and the throttle body hence the drastical improvement in airflow and cooling performance The do88 performance intercooler is an allaluminum construction With CADdesigned flow optimized cast end tanks along with an optimized core design it achieves the best possible cooling efficiency combined with lowest possible pressure drop The pressure pipes are manufactured in 25Ó TurboIntercooler and 275" IntercoolerThrottle body mandrel bent seamless aluminum pipes  Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement These hoses can handle very high temperature and pressure Always remember that the OEM intercooler was designed for the power level the car was built for originally A power increase or even very hard use of the car in standard version may cause the OEM intercooler not having the performance that you need So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler A common misunderstanding is that an intercooler installed in this position cannot provide good performance and that a front mounted intercooler / FMIC would be much better But actually the do88 BigPack is far better than most FMIC installations where only a core with a small front surface is possible to install partially behind the bumper beam which will reduce cooling capacity even further and often cooling abilities worse than the OEM intercooler are achieved do88 BigPack comes with all hardware necessary for installation Click here for intercooler installation guide Click here for pressure pipe installation guide Included parts in this BigPack 1 Performance intercooler 2 Pressure pipes 2pcs 3 Four silicone hoses 4 Eight stainless clamps |
|
When you order this BigPack there is one choice that has to me made 1 Color Three different hose colors are avalible Blue / Black / Red There are no performance difference between the different colors choose which color you think will be best for your car |
| Fits |
SAAB 93 Year models 20062011 Engine 28T V6 Aero / Turbo X B285 |
| OEM reference |
12800599 13247382 12790720 12790723 |
This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes
This diagram shows the charge air temperature post do88 performance intercooler compared to OEM intercooler
All tests are performed with test equipment with the exact same conditions for both do88 performance intercooler and OEM intercooler and can therefore be used for comparison of them
