Product Description:

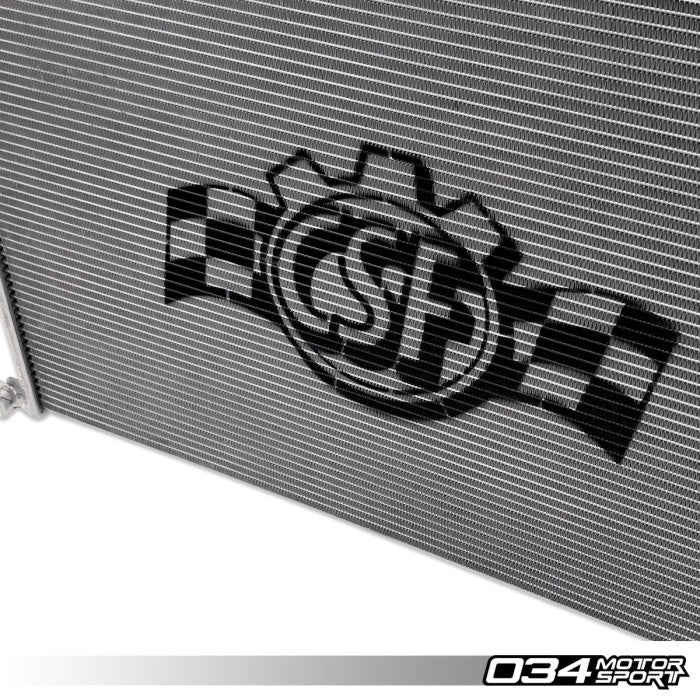

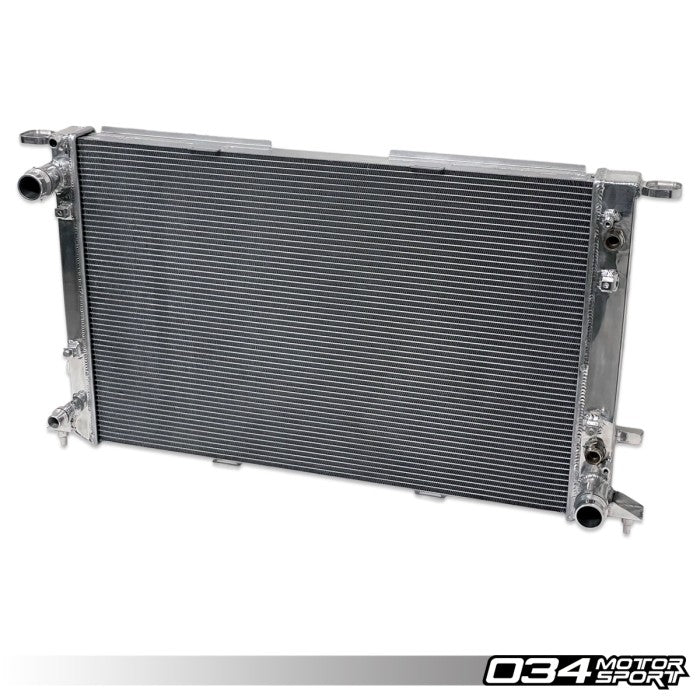

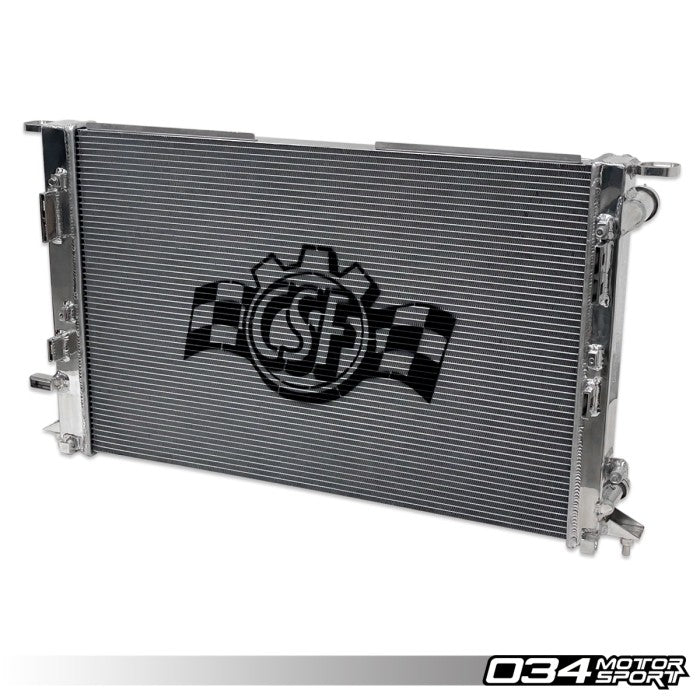

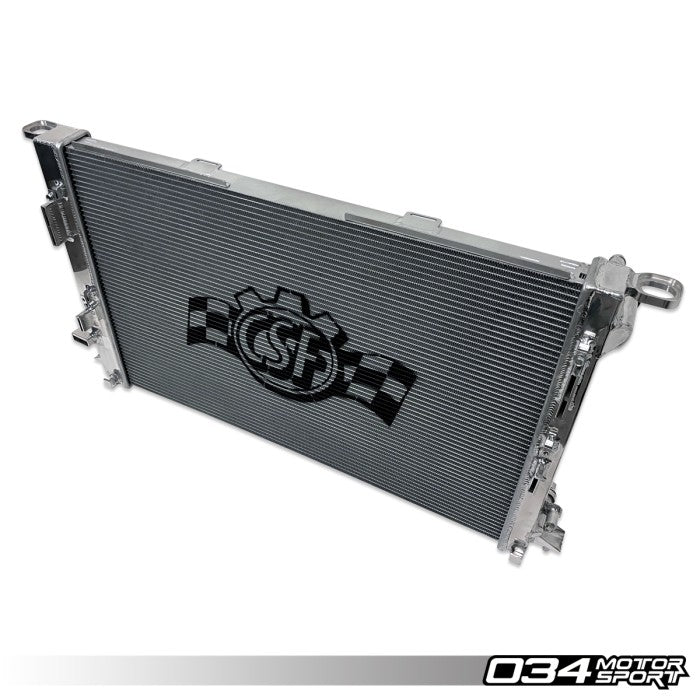

CSF’s High-Performance 2-Row Radiator is complete with precise CNC machined fittings and brackets to allow ease of installation in the complex plastic housing system. It also includes an OEM-style wire harness bracket system to secure the harness that runs across the top of the radiator.
In addition to CSF’s high-performance radiator core design, CSF has added an upgraded plate-type transmission oil cooler to the left side tank for improved transmission cooling in vehicles with automatic transmissions (comes pre-plugged for use in manual transmission vehicles).
Features:
- 2-Row 42mm High-Performance Core Featuring CSF’s B-Tube Technology
- Core Features Ultra-Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- 100% All-Aluminum TIG-Welded Construction

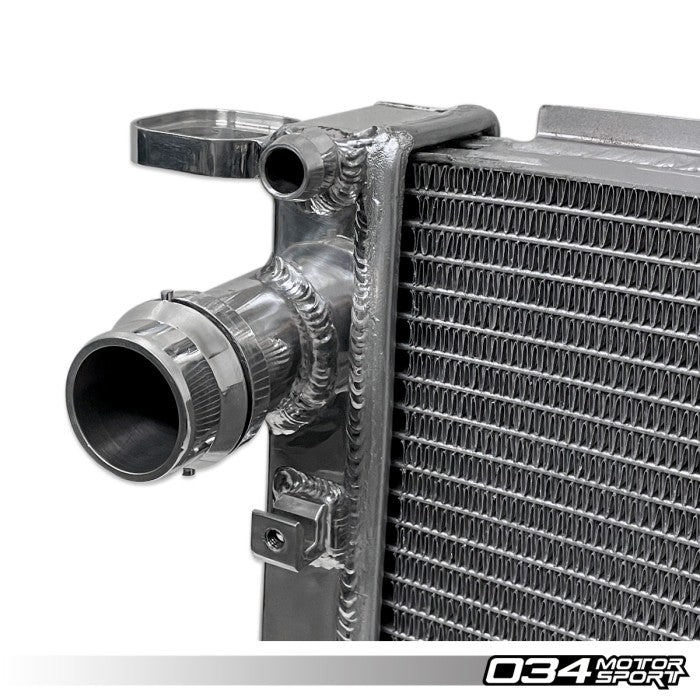

- CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
- Integrated High-Performance Transmission Oil Cooler for Both Automatic and Manual Transmissions
- Integrated OEM Style Wire Harness Brackets
- True “Drop-in Fit” Requires No Modifications to Install
- Individually Leak and Pressure Tested
- 1 Hour “Mirror Finish” Hand Polish
- 2 Year Limited Warranty
OEM Part Interchange:
- Automatic: 8K0-121-251-AL
- Manual: 8K0-121-251-H
Fitment
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | A4 | 2009-2016 | B8/B8.5 | 3.2L FSI |
| Audi | A5 | 2008-2017 | B8/B8.5 | 3.2L FSI |
| Audi | Q5 | 2009-2017 | B8/B8.5 | 3.0 TFSI |
| Audi | Q5 | 2009-2017 | B8/B8.5 | 3.2L FSI |
| Audi | S4 | 2010-2017 | B8/B8.5 | 3.0 TFSI |
| Audi | S5 | 2008-2017 | B8/B8.5 | 3.0 TFSI |
| Audi | SQ5 | 2012-2017 | B8/B8.5 | 3.0 TFSI |
