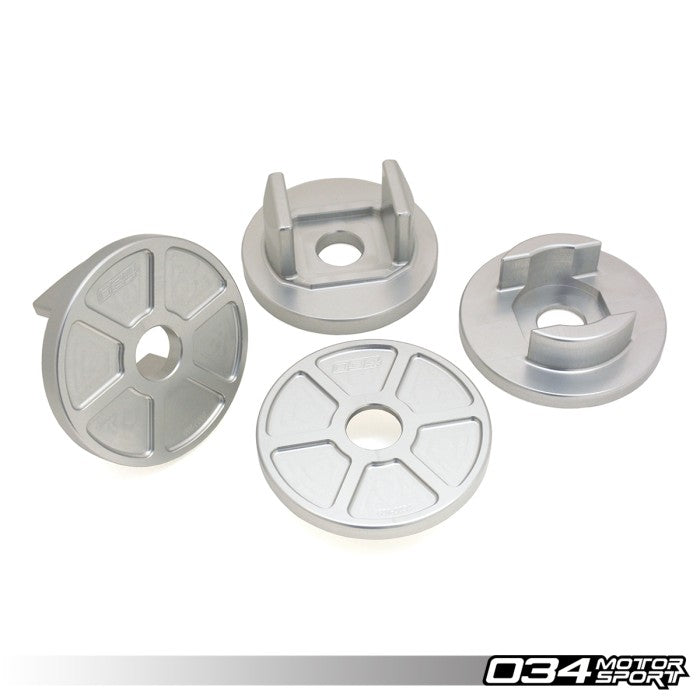

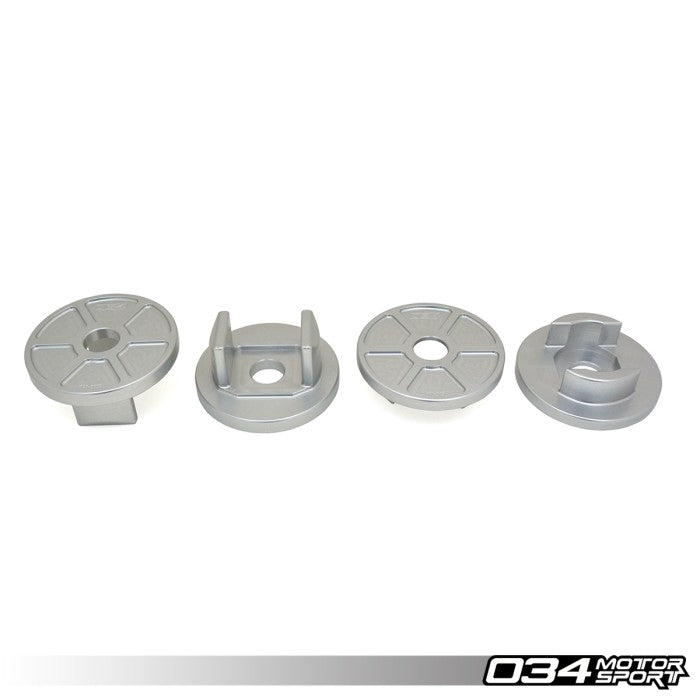

Billet Aluminum Rear Subframe Mount Insert Kit, B8/B8.5 Audi S4/RS4, S5/RS5, Allroad, Q5/SQ5, 95B Porsche Macan
Product Description:
034Motorsport is pleased to present Billet Aluminum Rear Subframe Mount Inserts for the B8/B8.5 Audi S4/RS4, S5/RS5, Q5/SQ5, and 95B Porsche Macan!
The B8/B8.5 Audi S4/RS4, S5/RS5, Q5/SQ5, and 95B Porsche Macan use rubber rear subframe mounts which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.
Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.
These inserts were tested extensively by 034Motorsport and independent Audi enthusiasts before release on multiple B8/B8.5 vehicles. Installation is very simple, can be performed in under an hour, and is completely reversible.
Features:
- T6-6061 Billet Aluminum Construction
- CNC-Machined In-House
- Clear Anodized Finish for Durability
- Engineered to Fill Voids In Factory Rear Subframe Mounts
- Helps Maintain Proper Suspension Geometry When Cornering
- Reduces Rear Subframe Movement During Launches & Acceleration
- Improves Shifting Feel, Resulting in Crisper Shifts
- Virtually No Additional NVH Transfer Inside Cabin
- Easy, Straightforward Installation
What's Included:
- 034Motorsport Billet Aluminum B8/B8.5 Audi S4/RS4, S5/RS5, Allroad, Q5/SQ5, and 95B Porsche Macan Rear Subframe Insert - Front (Pair)
- 034Motorsport Billet Aluminum B8/B8.5 Audi S4/RS4, S5/RS5, Allroad, Q5/SQ5, and 95B Porsche Macan Rear Subframe Insert - Rear (Pair)
NOTES:
- This insert set will not fit all subframe bushings. The difference can be determined by the direction of the steel cap covering the mount. If the steel cap long side is in the direction of travel, they won't work for your application. If the long side is perpendicular to the line of travel then you are good to go! Refer to the installation instructions to see what this looks like.
- The four factory rear subframe bolts can be reused at the torque specified in our Installation Guide. If you wish to purchase new stretch factory hardware, the part number for these bolts is WHT004756A. SQ5 Models utilize a different bolt for the front bushings on the rear subframe and will require two bolts with factory part number WHT005800.
Fitment
NOTE: This insert set will not fit all subframe bushings. The difference can be determined by the direction of the steel cap covering the mount. If the steel cap long side is in the direction of travel, they won't work for your application. If the long side is perpendicular to the line of travel then you are good to go! Refer to the installation instructions to see what this looks like.
The installation of your 034Motorsport B8/B8.5 Audi S4/RS5, S5/RS4, Q5/SQ5 Rear Subframe Bushing Insert Set is a relatively simple process that will take approximately one hour to complete. You can access our detailed installation guide by clicking the icon on the left.
Download B8/B8.5 Audi S4/RS4, S5/RS5, Q5/SQ5 Rear Subframe Bushing Insert Install Guide
Video Comparison: 034Motorsport B8/B8.5 Audi S4/RS4, S5/RS5, Q5/SQ5 Rear Subframe Mount Inserts vs. Stock
