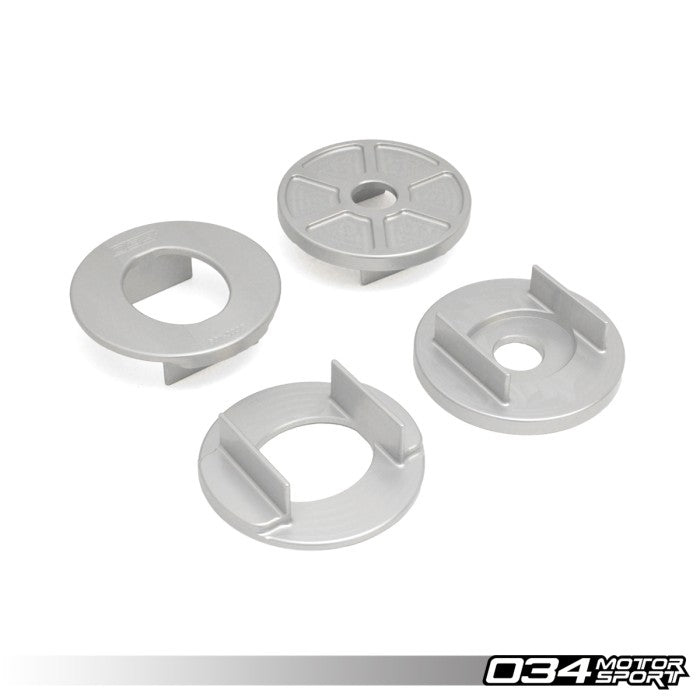

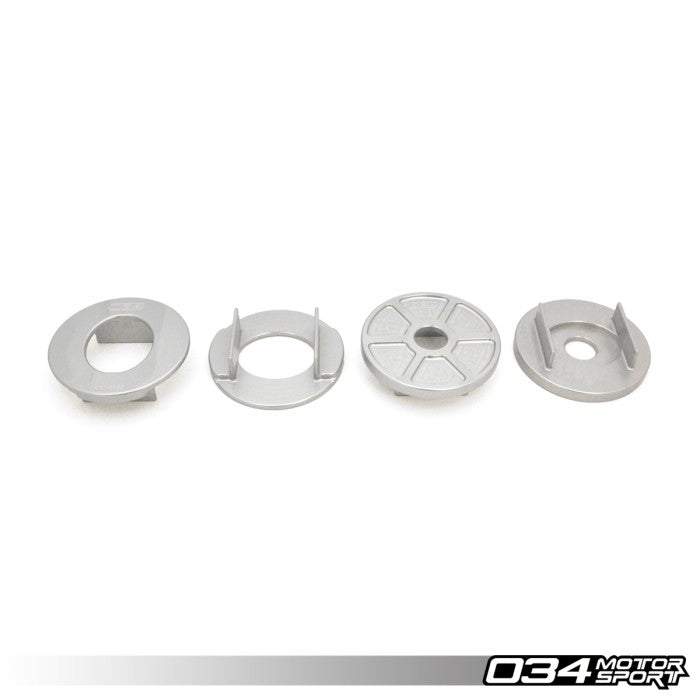

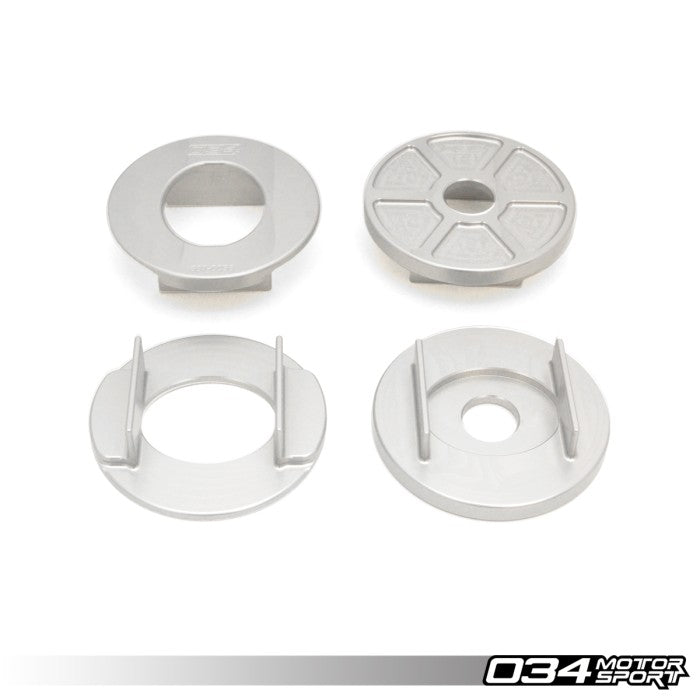

Billet Aluminum Rear Subframe Mount Insert Kit, B8/B8.5 Audi A4/A5

034Motorsport is pleased to present Billet Aluminum Rear Subframe Mount Inserts for the B8/B8.5 Audi A4/A5/Allroad!

The B8/B8.5 Audi A4/A5/Allroad use rubber rear subframe mounts which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.

Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

These inserts were tested extensively by 034Motorsport and independent Audi enthusiasts before release on multiple B8/B8.5 vehicles. Installation is very simple, can be performed in under an hour, and is completely reversible.

• 034Motorsport Billet Aluminum B8/B8.5 Audi A4/A5 Rear Subframe Insert - Front (Pair)
• 034Motorsport Billet Aluminum B8/B8.5 Audi A4/A5 Rear Subframe Insert - Rear (Pair)

Please Note: The four factory rear subframe bolts can be reused at the torque specified in our Installation Guide. If you wish to purchase new stretch factory hardware, the part number for these bolts is WHT004756A.

The installation of your 034Motorsport B8/B8.5 Audi A4/A5/Allroad Rear Subframe Bushing Insert Set is a relatively simple process that will take approximately 90 minutes to complete. You can access our detailed installation guide by clicking the icon on the left.

Download B8/B8.5 Audi A4/A5/Allroad Rear Subframe Bushing Insert Install Guide
