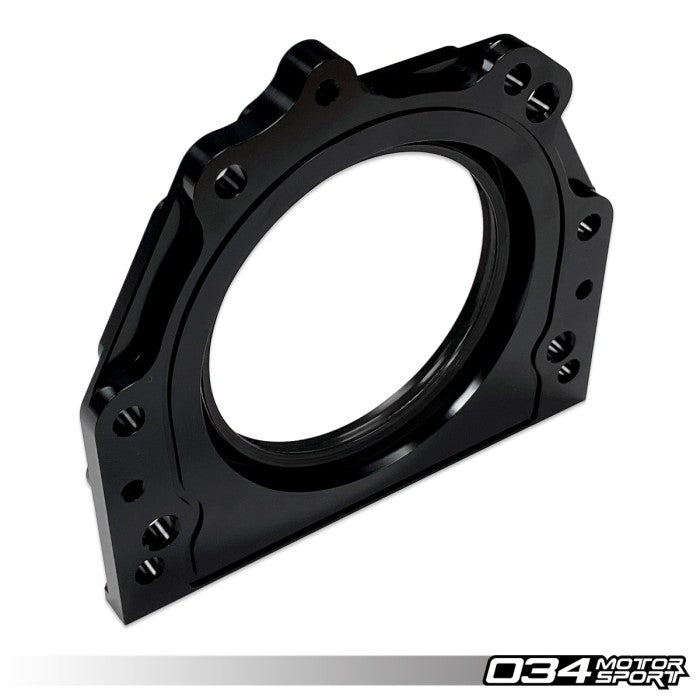

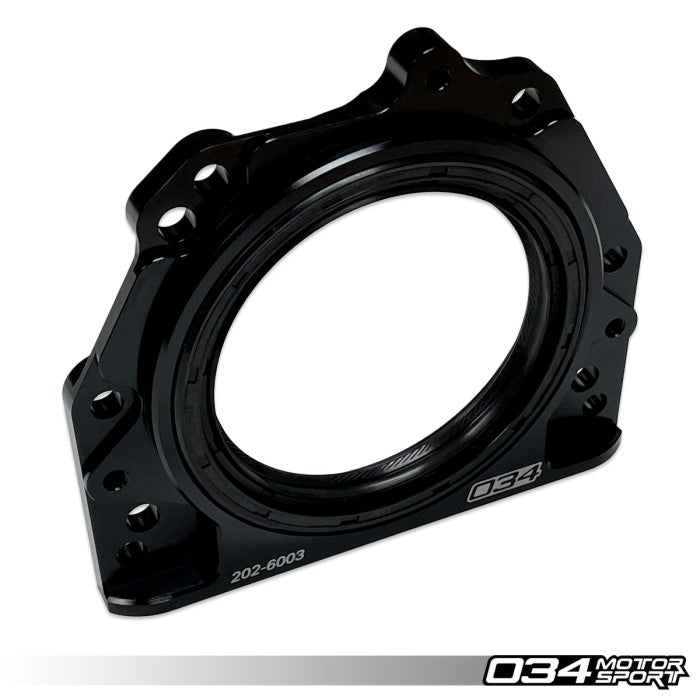

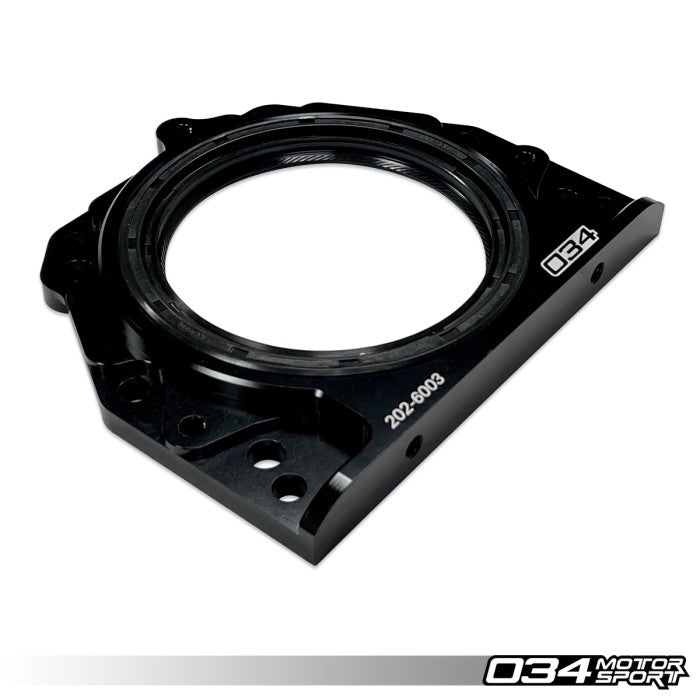

Billet Aluminum Rear Main Seal, 1.8T

Name: Billet Aluminum Rear Main Seal, 1.8T
Brand: 034MOTORSPORT
SKU: 034-202-6003
Price: 339.0 NZD
Availability: InStock

by 034MOTORSPORT

Sale

$483.99

$339.00

Quantity

This product is ready to order. Orders will have an estimated 2-week lead time.

Product Description:

034Motorsport’s Billet Aluminum Rear Main Seal is designed to replace the failure-prone stamped steel factory Rear Main Seal on your 1.8T or 2.0T FSI Volkswagen and Audi. This Billet Rear Main Seal is CNC machined from 6061-T6 Aluminum and features an OEM Viton Elring seal with an integral tension spring to ensure a tight seal to the crankshaft.

The OEM rear main seal utilizes a poorly designed PTFE “sealing lip” which over time leads to an oil leak between your engine and transmission. The failure of a rear main seal can also cause crankcase pressure issues and possibly even misfires.

The 034Motorsport Billet Aluminum Rear Main Seal has been tested and proven to last under high heat and intense abuse and is an excellent upgrade for replacing your leaking rear main seal. It is also an outstanding preventative maintenance modification that can save you from future headaches of oil leaks, stained driveways, and reduced performance that a leaky OEM rear main seal brings with it.

Features:

CNC Machined from Billet 6061-T6 Aluminum
Gloss Black Anodizing
Sealant Groove for a Positive Seal and to Avoid Sealant "Squeeze Out"
"Screwdriver Gap" on Rear to Help with Future Removal
OEM Elring Seal With Integral Tension Spring
Seal pre-installed in billet housing, other options on the market force you to install this yourself
Installation Tool is Included to Make Installation Easier, and Protect the Seal from Damage
New Hardware (Grade 8.8)
Direct replacement to OEM Part 06A 103 171A

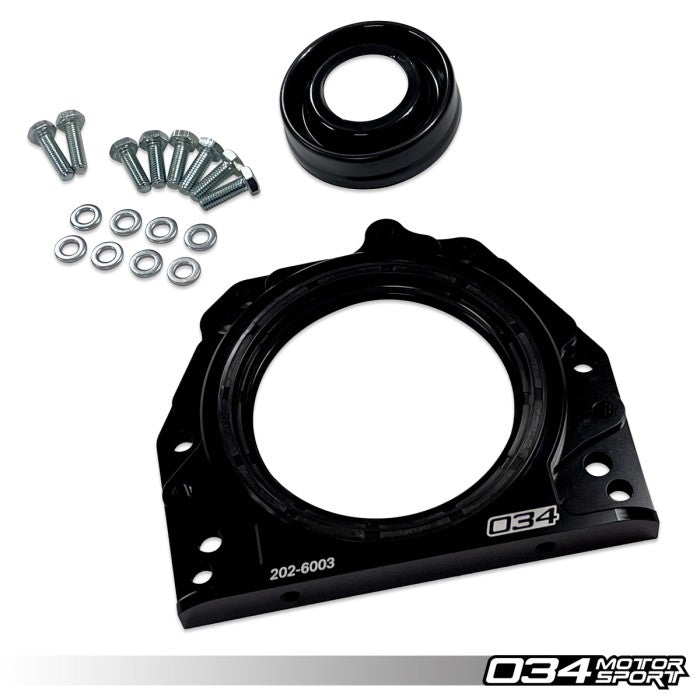

What’s Included:

Billet Rear Main Seal Holder
Elring Rear Main Seal
Mounting Hardware

Fitment

Make Model Years Chassis Engine Audi A3 2006-2008 8P 2.0T FSI Audi A4 1996-2001 B5 1.8T Audi A4 2002-2005 B6 1.8T Audi A4 2005-2008 B7 2.0T FSI Audi TT 2000-2006 8N 1.8T Audi TT 2000-2006 8N 1.8T Audi TT 2008-2015 8J 2.0 TFSI Audi TT 2008-2015 8J 2.0 TSI Audi TT 2008-2015 8J 2.0T FSI Audi TT 2008-2015 8J 2.0T FSI VW Beetle 1998-2010 MkIV 1.8T VW Beetle 1998-2010 MkIV 2.0L 8V VW CC 2009-2015 B7 2.0 TSI VW Eos 2006-2015 MkV 2.0 TSI VW Eos 2006-2015 MkV 2.0T FSI VW GLI 1985-1993 MkII 16V VW GLI 1985-1993 MkII 8V VW GLI 1994-1998 MkIII 2.0L 8V VW GLI 1999-2004 MkIV 1.8T VW GLI 1999-2004 MkIV 2.0L 8V VW GLI 2008.5 MkV 2.0 TSI VW GLI 2005-2008 MkV 2.0T FSI VW Golf 1985-1993 MkII 16V VW Golf 1985-1993 MkII 8V VW Golf 1994-1998 MkIII 2.0L 8V VW Golf 1999-2005 MkIV 1.8T VW Golf 1999-2005 MkIV 2.0L 8V VW GTI 1985-1993 MkII 16V VW GTI 1985-1993 MkII 8V VW GTI 1994-1998 MkIII 2.0L 8V VW GTI 1999-2005 MkIV 1.8T VW GTI 1999-2005 MkIV 2.0L 8V VW GTI 2006-2008 MkV 2.0T FSI VW Golf R 2012 - 2013 Mk6 2.0 FSI VW Jetta 1985-1993 MkII 16V VW Jetta 1985-1993 MkII 8V VW Jetta 1994-1998 MkIII 2.0L 8V VW Jetta 1999-2004 MkIV 1.8T VW Jetta 1999-2004 MkIV 2.0L 8V VW Jetta 2011-2015 MkVI 2.0L 8V VW Passat 1990-1997 B3/B4 2.0L 16V VW Passat 1998-2005 B5/B5.5 1.8T VW Passat 2006-2010 B6 2.0 TSI VW Passat 2006-2010 B6 2.0T FSI VW Rabbit 1985-1993 MkII 16V VW Rabbit 1985-1993 MkII 8V VW Rabbit 1994-1998 MkIII 2.0L 8V VW Rabbit 1999-2005 MkIV 1.8T VW Rabbit 1999-2005 MkIV 2.0L 8V Note: Not compatible with OEM Rear Main Seal p/n 06A 103 171 B.

Remove and install crankshaft seal retainer as per factory service manual with the following notes:

Use oil compatible RTV ONLY (black usually)
Torque all bolts to 15NM
When installing, push guide sleeve from repair kit onto crankshaft
Do not apply oil to the sealing lip of the seal
Make sure that the sealing lip of the sealing ring is not folded back or damaged when installing
