Description

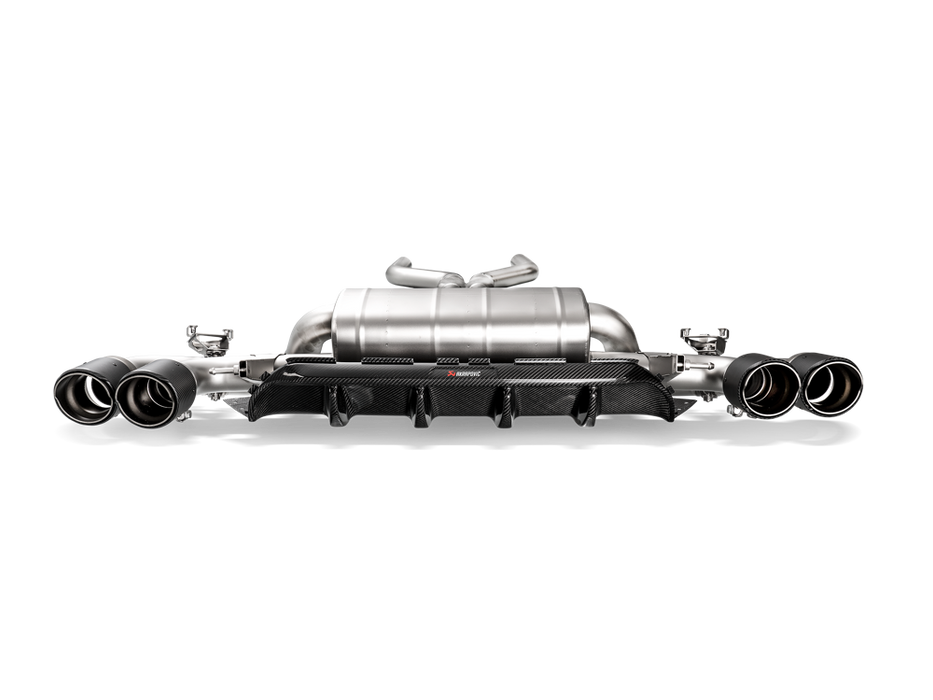

Akrapovic Exhaust System for BMW M5/M5 Competition (F90)
Primary Components:

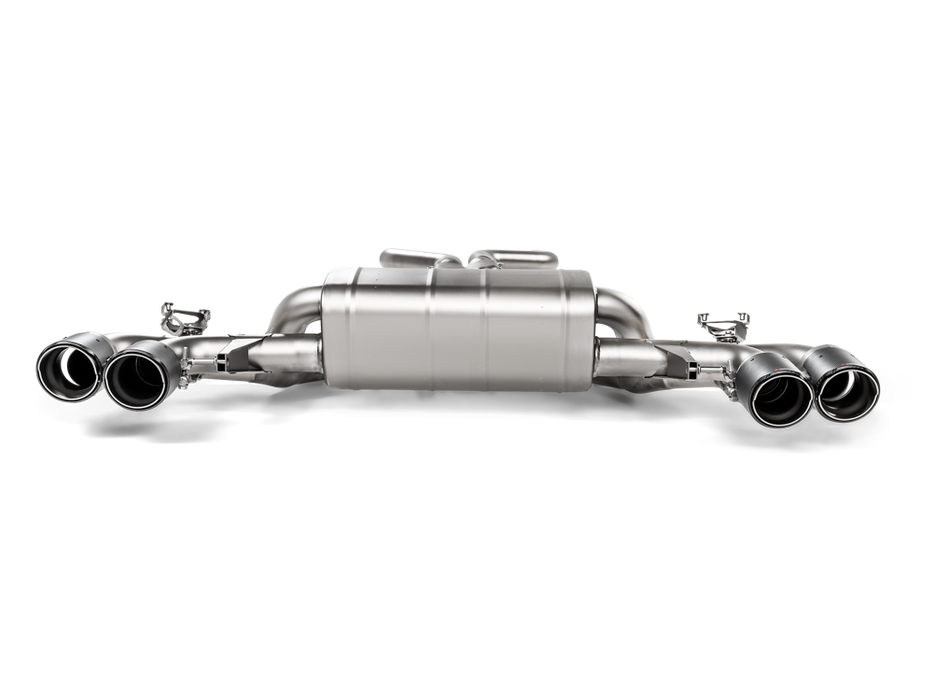

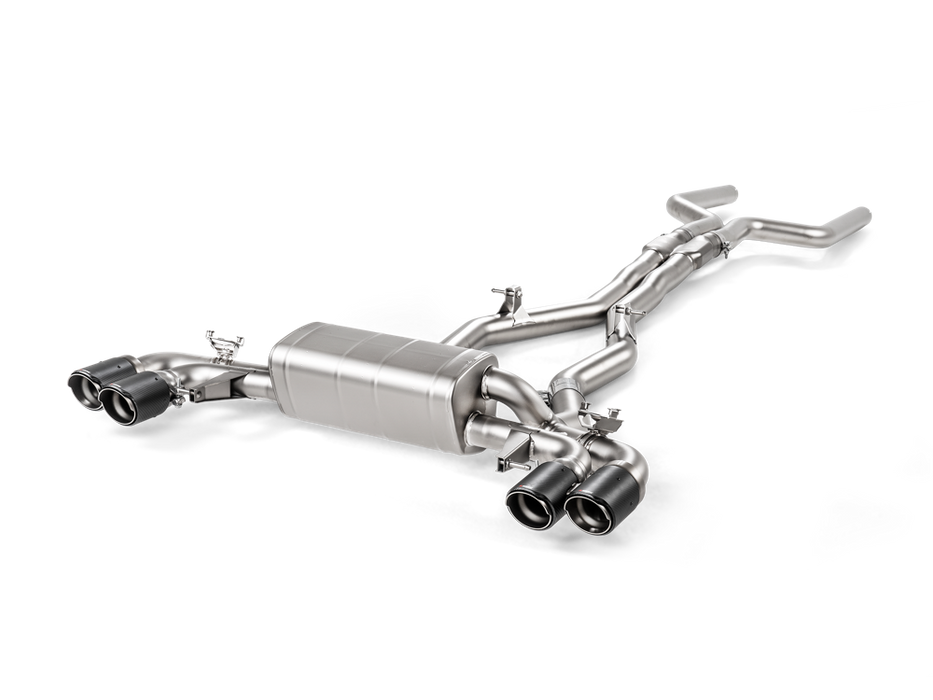

Akrapovic Evolution Line (Titanium) for BMW F90 M5 / M5 Competition (S-BM/T/2H)
Built from high-grade lightweight titanium to reduce weight, with valve housings cast in the in-house foundry, the Evolution Line (Titanium) exhaust system fits directly onto the BMW M5’s stock downpipes. Developed to deliver both power and torque gains throughout the range and significantly reduce the back pressure, it is finished with hand-crafted carbon-fibre tailpipes to enrich the visual enjoyment of the exhaust. The tailpipes have been perfectly crafted and designed to fit beautifully within the optional carbon-fibre diffuser. Optional carbon-fibre mirror caps are also available to further enhance the car's appearance.
The system is a simple plug-and-play operation to fit, and has been designed to meet ECE type approval. The optional Akrapovic Sound Kit is also available.
Fitment notice: This system does not fit on vehicles equipped with Otto particulate filter (OPF).
This product fits also on BMW M5 CS NON-OPF vehicles.
Technical Data
| Unit | Stock | Akrapovic | Max gain |
|---|---|---|---|
| kW | 439.2 / 6100 rpm | 443.4 / 6100 rpm | + 8.3 / 5700 rpm |
| HP (m) | 597.1 / 6100 rpm | 602.8 / 6100 rpm | + 11.3 / 5700 rpm |
| HP (i) | 589.0 / 6100 rpm | 594.6 / 6100 rpm | + 11.1 / 5700 rpm |
| Nm | 740.0 / 2900 rpm | 748.0 / 3050 rpm | + 21.3 / 2300 rpm |
| lb-ft | 545.8 / 2900 rpm | 551.7 / 3050 rpm | + 15.7 / 2300 rpm |
| kg | 29.0 | 19.5 | - 9.4 |
| lb | 63.8 | 43.0 | - 20.8 |
| % | - 32.6 | ||
| min | 180 |

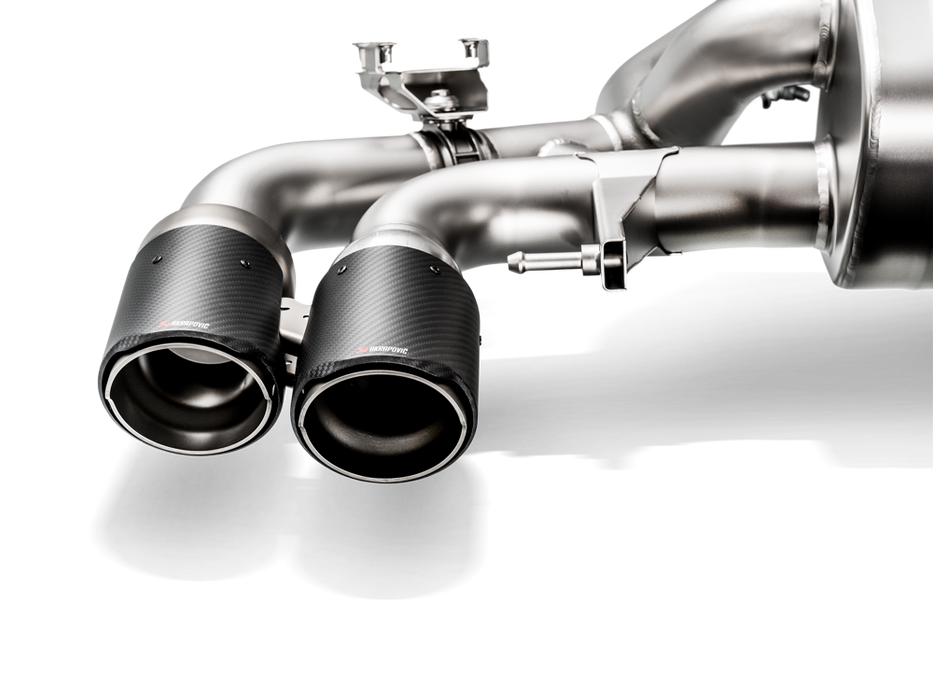

Akrapovic Carbon Tail Pipe Set for BMW M5 / M5 Competition (F90) (TP-CT/47/RS)
As the most visible part of an exhaust system, we pay the utmost attention to the tailpipes. Akrapovic has created hand-crafted carbon-fibre tailpipes to enrich the visual enjoyment of the Slip-On or Evolution exhaust systems. Sporting the unique Akrapovic round design, the carbon- version has sandblasted titanium inner parts with a bigger diameter than stock tailpipes to make them stand out from the crowd even more. The new model was unveiled with distinctive Akrapovic design elements, and these beautifully crafted additions are designed to fit perfectly with the carbon- diffuser.
This Carbon Tail pipe set, comes with red/white Akrapovic logo.
Optional Components:

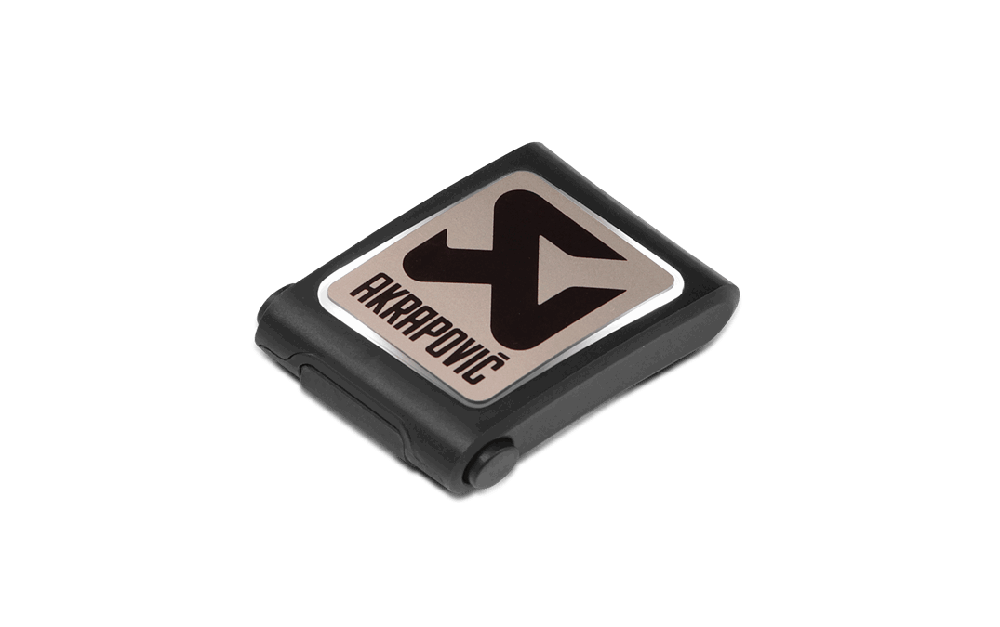

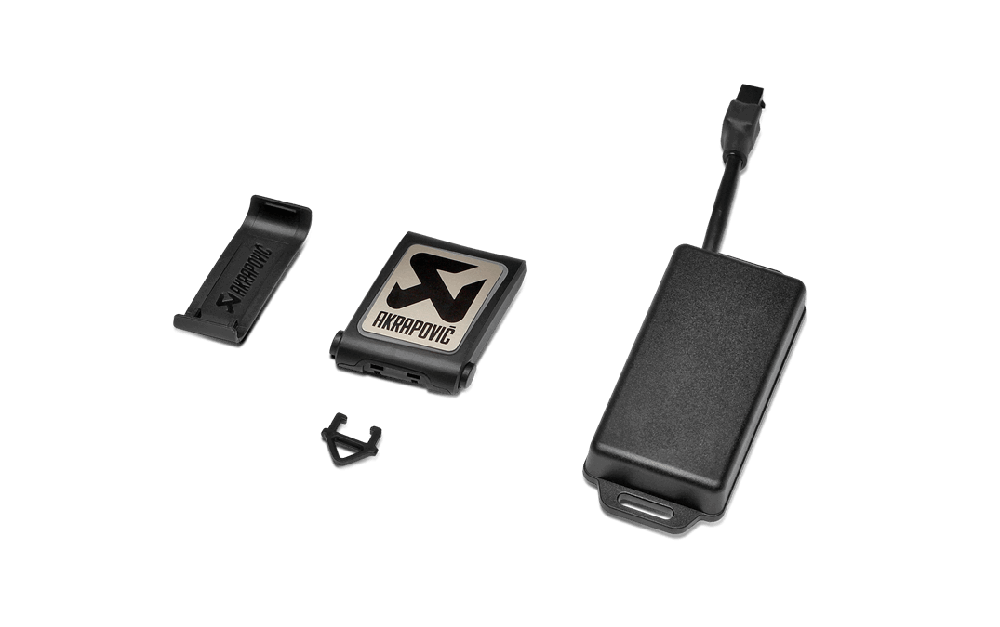

Akrapovic Sound Kit for BMW F90 M5 (P-HF1132)
The optional Akrapovic Sound Kit enables owners of selected Akrapovic car exhausts to control the sound of the system from the cockpit of their machine. Using Akrapovic technology, drivers can easily switch between the quiet mode and a sportier sound. With the use of a receiver (already included in evolution system) to drive the actuators that open or close the valves at the end of the exhaust system, drivers can use the Sound Remote Controller to regulate the valves.
With the use of the optional Akrapovic Sound Kit, the ECE type approval is no longer valid.
Pictures are symbolic.
Technical Data
| Unit | Stock | Akrapovic | Max gain |
|---|---|---|---|
| min | 120 |

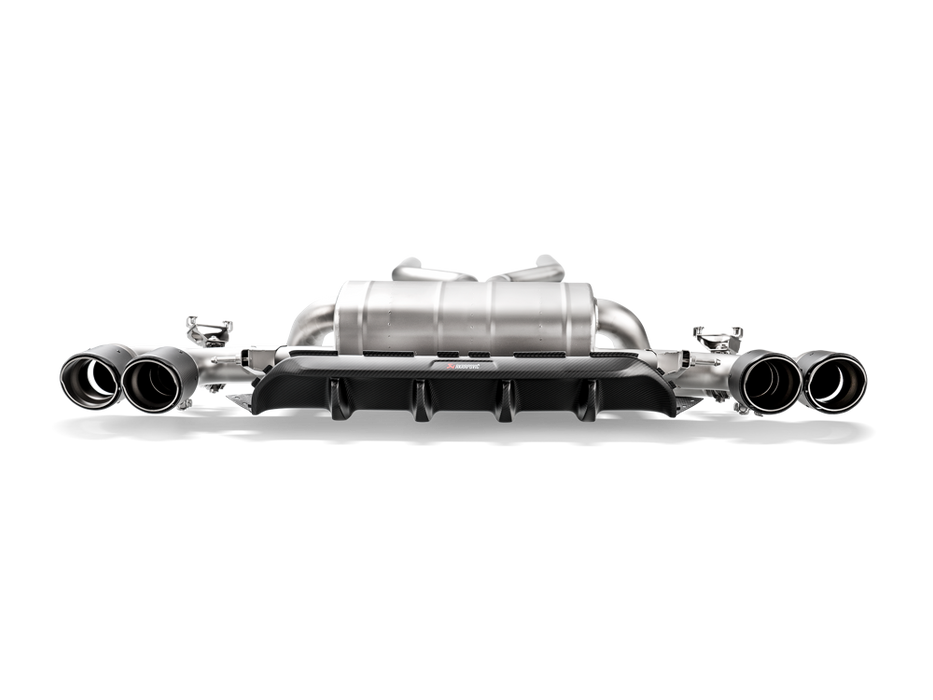

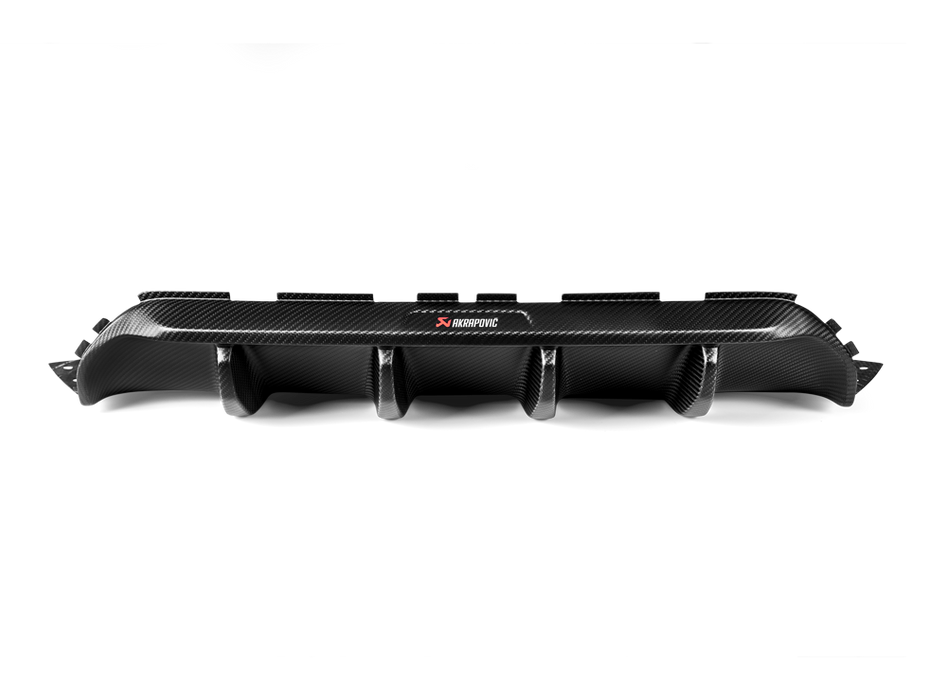

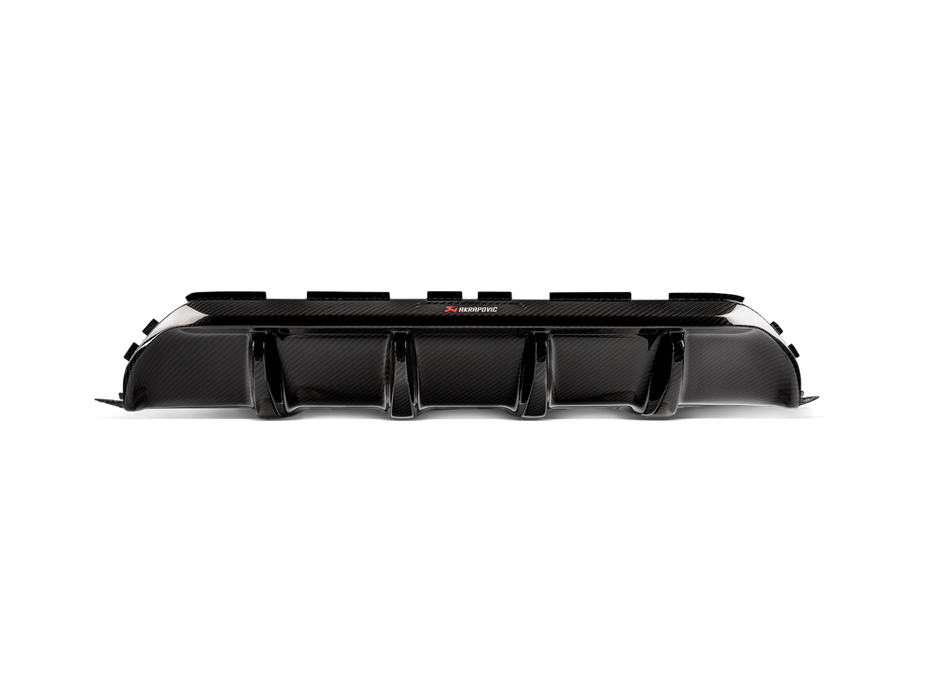

Akrapovic Rear Carbon Fibre Diffuser with Red/White Logo - Gloss for M5 (F90) (DI-BM/CA/5/G/RS)
The stunning carbon fibre diffuser is offered as an option with the choice of a high-gloss or matt finish. It is a completely new design from the one that comes as standard on the car, and it gives the rear of the M5 a more aggressive and sporty feel. It shows off the tailpipes to their full extent and is a perfect accompaniment to the side mirror caps.
This Rear Carbon Fiber Diffuser - High Glossy, comes with red/white Akrapovic logo.
Fitment notice: The diffuser cannot fit with genuine trailer tow hitch.
With Akrapovic diffuser, hands-free trunk-lid opening/closing sensor is not working.
Technical Data
| Unit | Stock | Akrapovic | Max gain |
|---|---|---|---|
| kg | 0.7 | 0.5 | - 0.3 |
| lb | 1.6 | 1.0 | - 0.6 |
| % | - 36.1 | ||
| min | 30.0 |
Akrapovic Rear Carbon Fibre Diffuser with Red/White Logo - Matte for M5 (F90)
Fitment
Akrapovic Exhaust System for BMW M5/M5 Competition (F90) - AKRA-BMW-30-KIT
Primary Components Fitment:
S-BM/T/2H
- BMW - M5 / M5 Competition (F90) (2018 - 2023)
TP-CT/47/RS
- BMW - M5 / M5 Competition (F90) (2018 - 2023)
- BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)
Optional Components Fitment:
P-HF1132
- BMW - M5 / M5 Competition (F90) (2018 - 2023)
- BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)
DI-BM/CA/5/G/RS
- BMW - M5 / M5 Competition (F90) (2018 - 2023)
- BMW - M5 / M5 Competition (F90) - OPF/GPF (2018 - 2023)
Media
Akrapovic Exhaust System for BMW M5/M5 Competition (F90) - AKRA-BMW-30-KIT
Primary Components:
Akrapovic Evolution Line (Titanium) for BMW F90 M5 / M5 Competition (S-BM/T/2H)
Schematic new version:
Performance graph:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ECE Type-Approval Certificate:
POS HF:
STOCK EXHAUST; BMW M5 (F90)
EVOLUTION; BMW M5 (F90)
Akrapovic Carbon Tail Pipe Set for BMW M5 / M5 Competition (F90) (TP-CT/47/RS)
Schematic new version:
Optional Components:
Akrapovic Sound Kit for BMW F90 M5 (P-HF1132)
Schematic new version:
User manual - EN:
User manual - DE, IT, FR, ES, PT, SI:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
POS HF:
Akrapovic Rear Carbon Fibre Diffuser with Red/White Logo - Gloss for M5 (F90) (DI-BM/CA/5/G/RS)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
ABE Type-Approval Certificate:
POS HF:
