Description

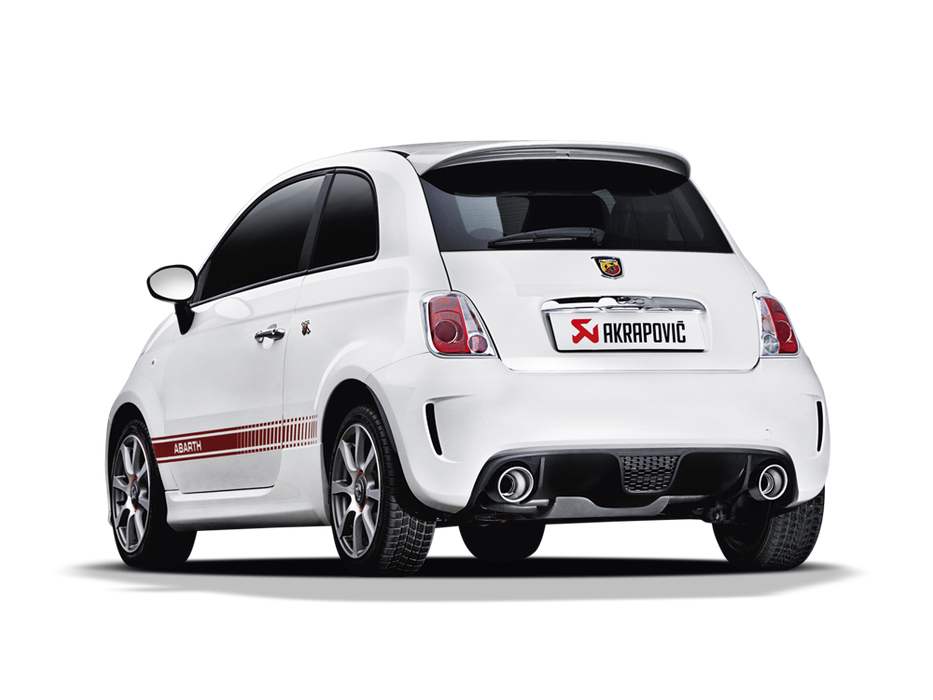

Akrapovic Exhaust System for Abarth 500/500C
Primary Components:

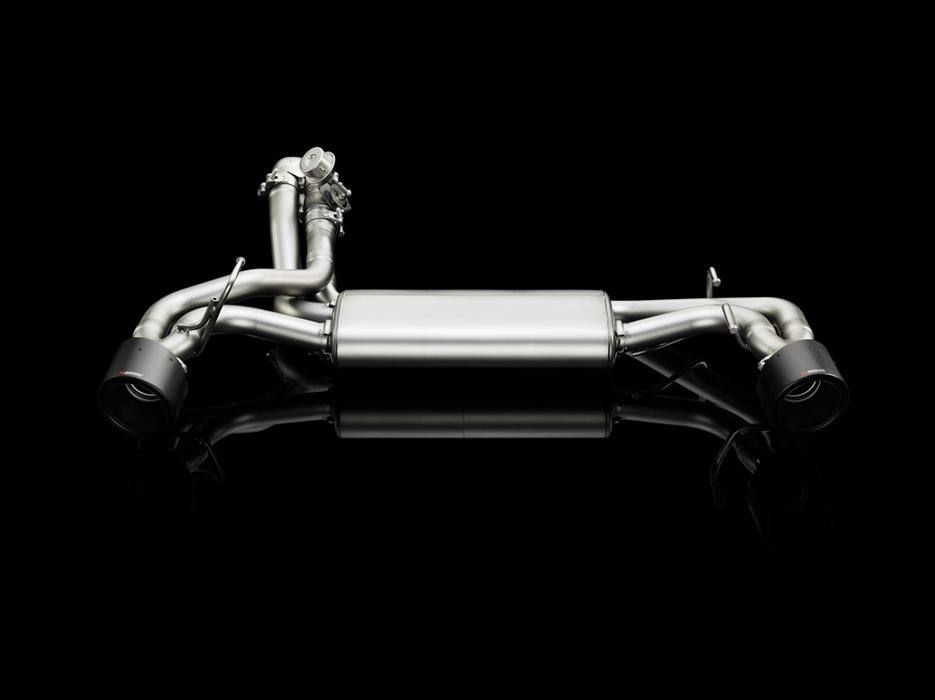

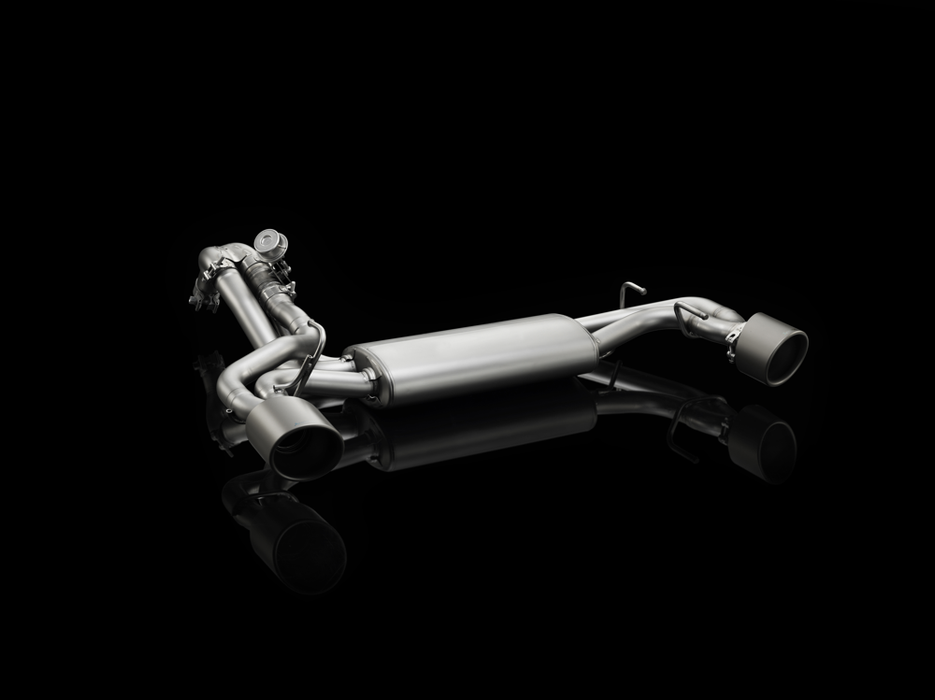

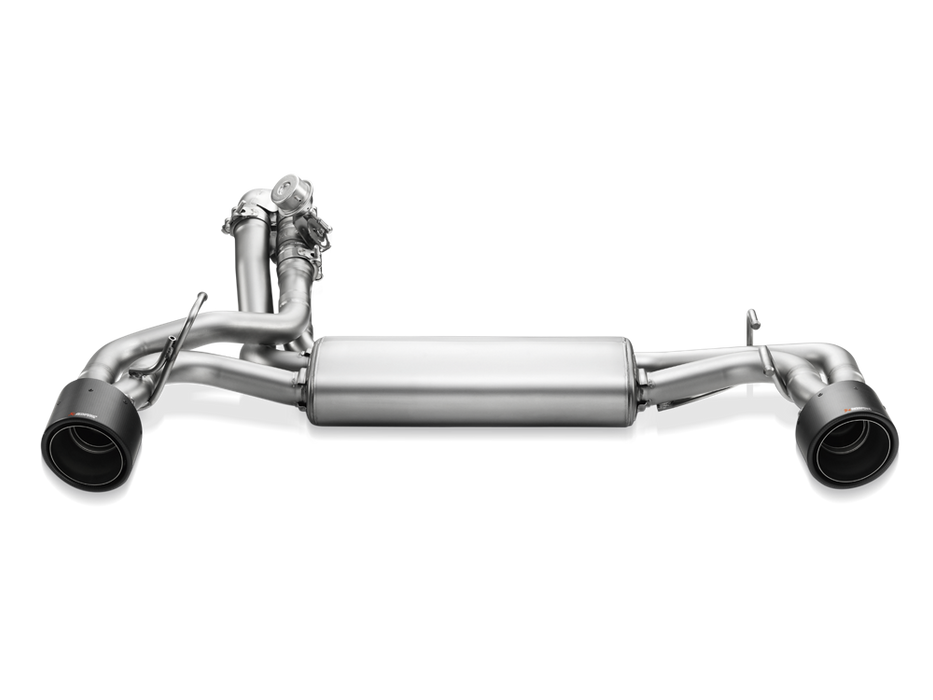

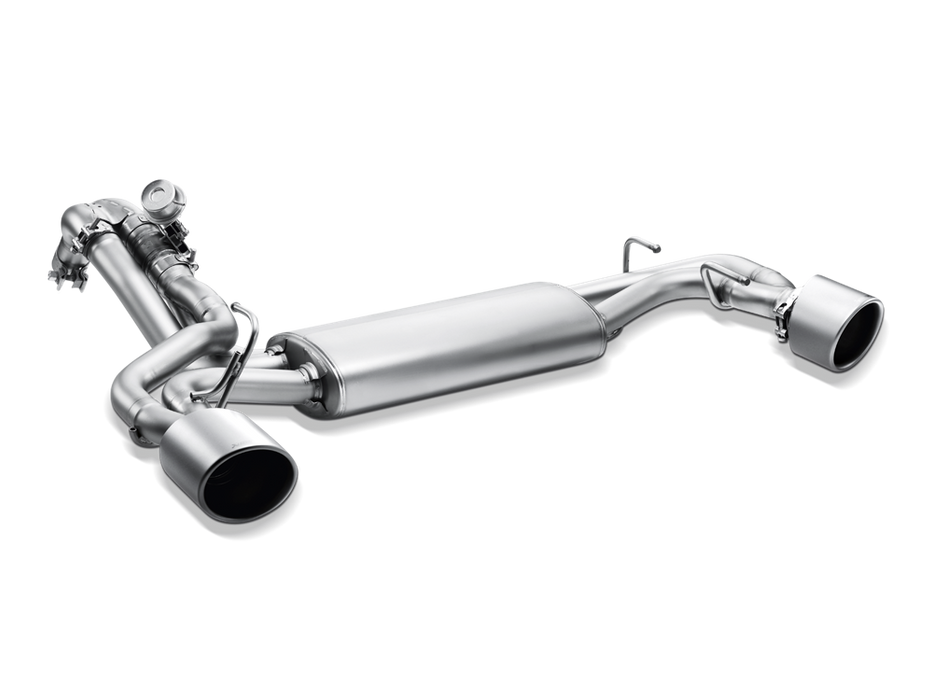

Akrapovic Slip-On Line (SS) for Abarth 500/595 without TailPipes (M-FI/SS/1H)
Add a stainless steel Slip-On exhaust system and make the Abarth (1.4 16V T Jet) even faster, even more responsive, and give it an even more striking look and that unmistakable sporty Akrapovic sound. The biggest difference compared to stock is most noticeable when the optional Akrapovic sound kit for adjustable sound is used. When the exhaust valve is open, the sound becomes significantly deeper and tastefully louder, but still entirely without droning. Performance facts apply to the performance exhaust with the Akrapovic sound kit and open valves. The system without the Akrapovic sound kit has a point-welded block in the link pipe that prevents bypassing the muffler. Please note: when the bypass is unblocked, the EC type approval is not valid. Complete the look with a set of exquisite 115 mm tailpipes in either titanium or carbon fibre.
Warning: This product will not fit on US spec Abarth.
Technical Data
| Unit | Stock | Akrapovic | Max gain |
|---|---|---|---|
| kW | 107.2 / 5160 rpm | 108.9 / 5200 rpm | + 2.4 / 4100 rpm |
| HP (m) | 145.8 / 5160 rpm | 148.1 / 5200 rpm | + 3.3 / 4100 rpm |
| HP (i) | 143.8 / 5160 rpm | 146.0 / 5200 rpm | + 3.2 / 4100 rpm |
| Nm | 227.9 / 3660 rpm | 232.0 / 3700 rpm | + 5.3 / 3860 rpm |
| lb-ft | 168.1 / 3660 rpm | 171.1 / 3700 rpm | + 3.9 / 3860 rpm |
| kg | 13.2 | 10.3 | - 2.9 |
| lb | 29.1 | 22.7 | - 6.4 |
| % | - 22.0 |
Mandatory Components:

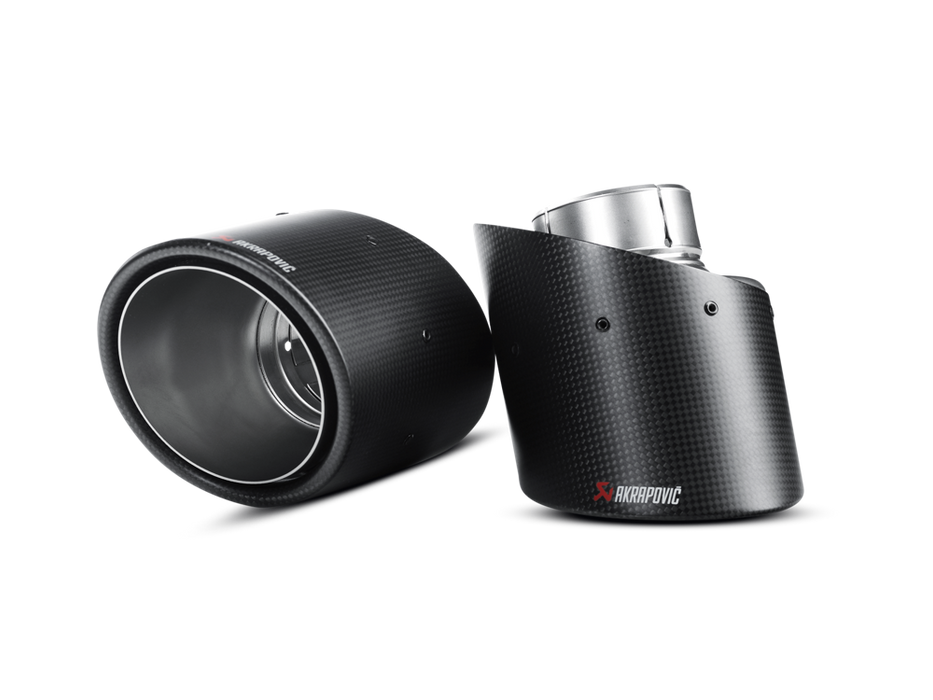

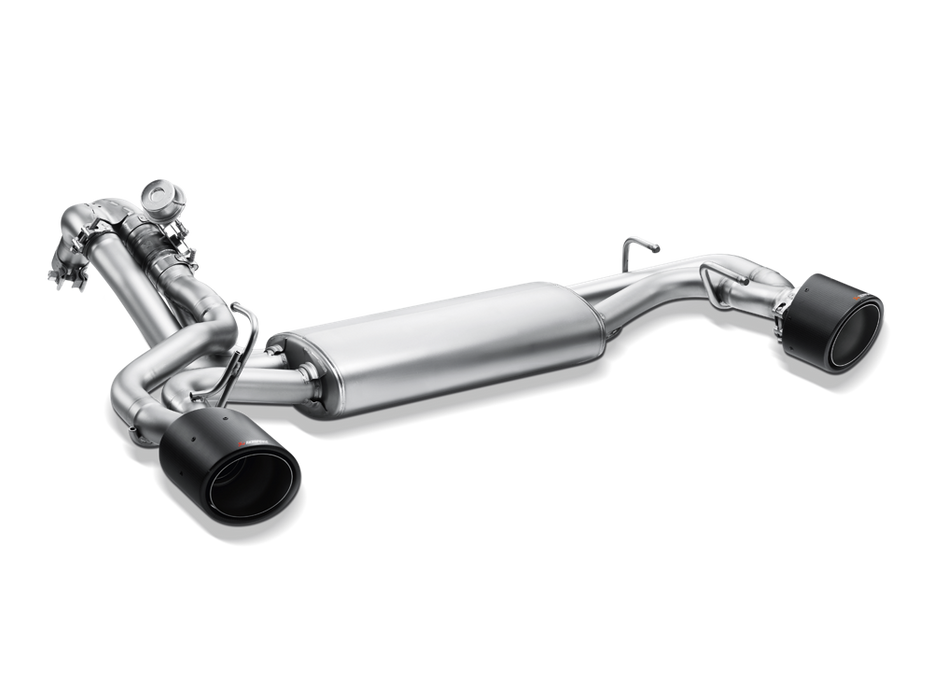

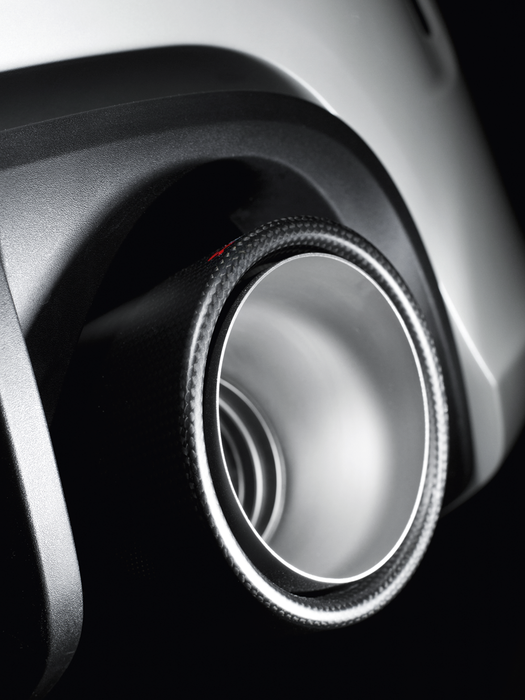

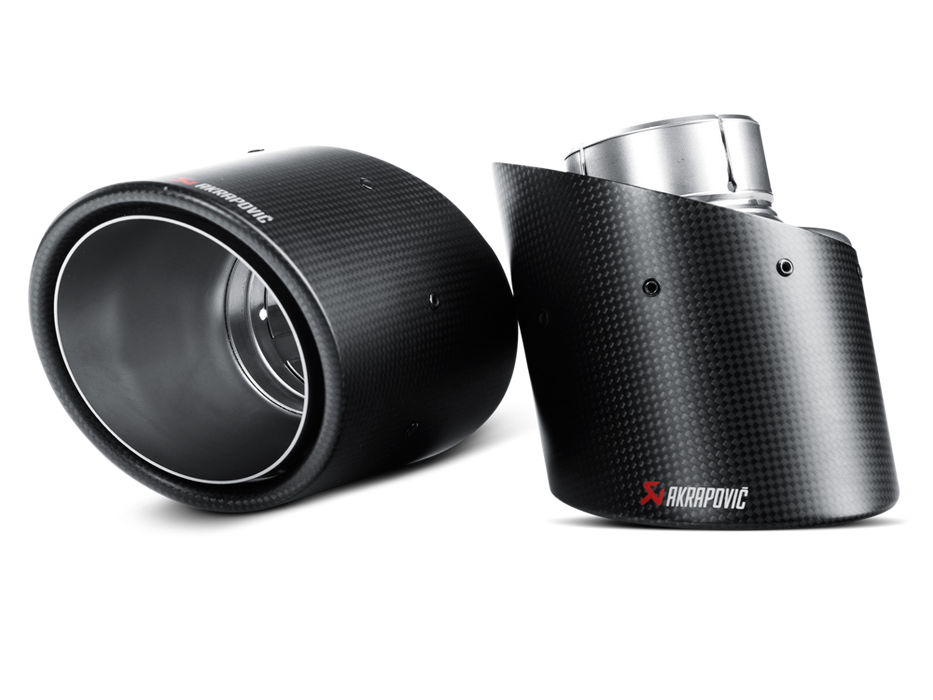

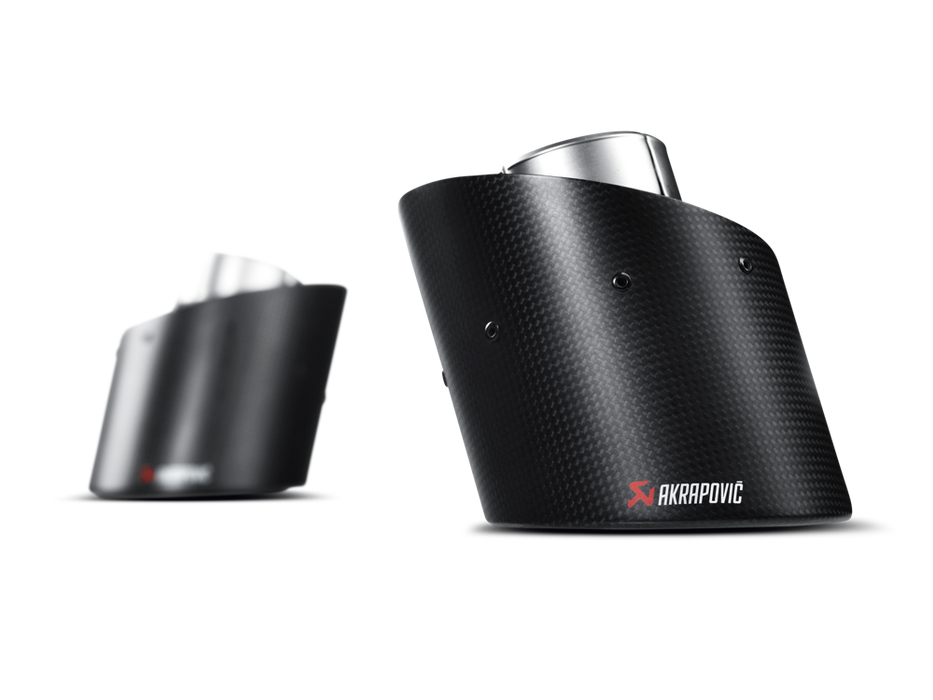

Akrapovic Carbon Tail Pipe Set for Abarth 500/500C (TP-CS/1)
The tailpipes are the most visible part of the exhaust system, and that’s why we dedicate particular attention to them at Akrapovic. In order to satisfy the most discriminating tastes, we’ve created handcrafted carbon-fibre tailpipes. To make our tailpipes stand out from the rest even more, in addition to selecting the finest materials, we also made them larger.

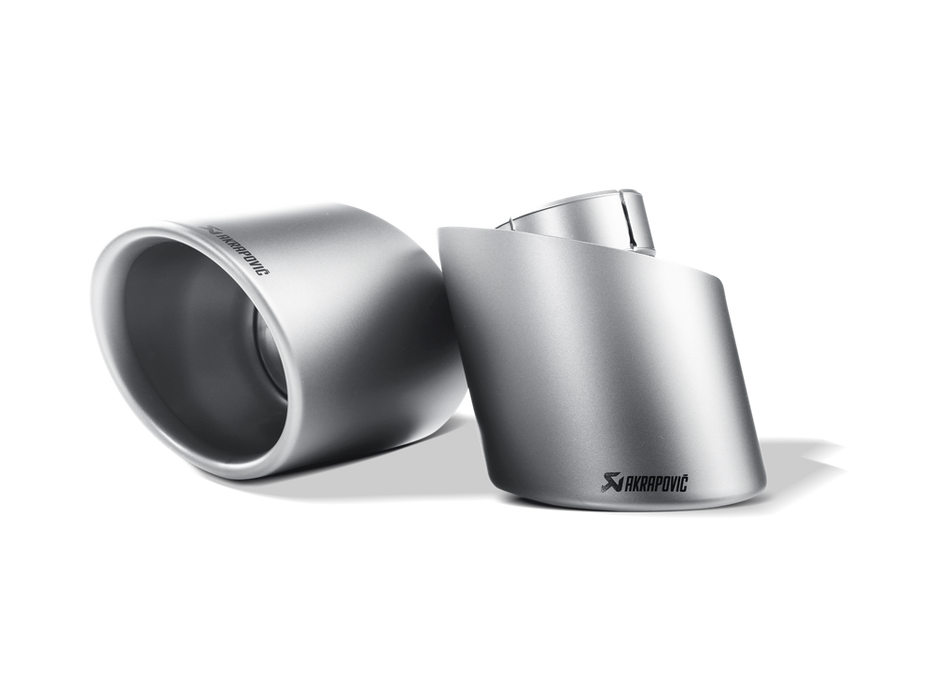

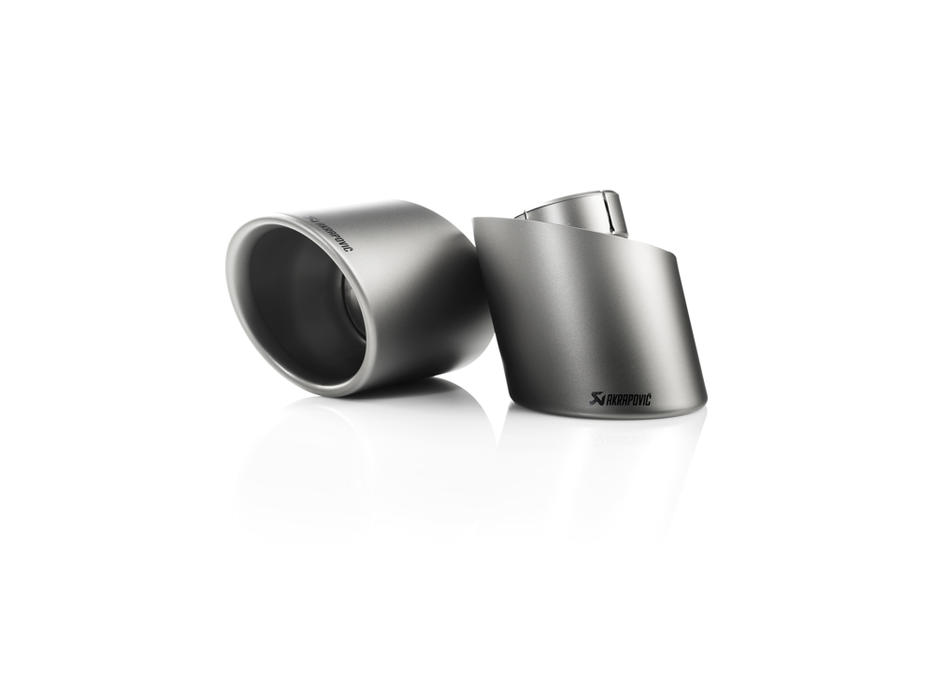

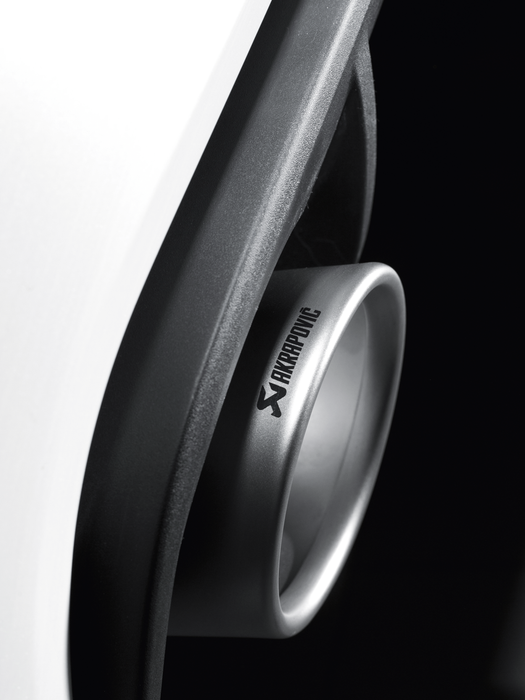

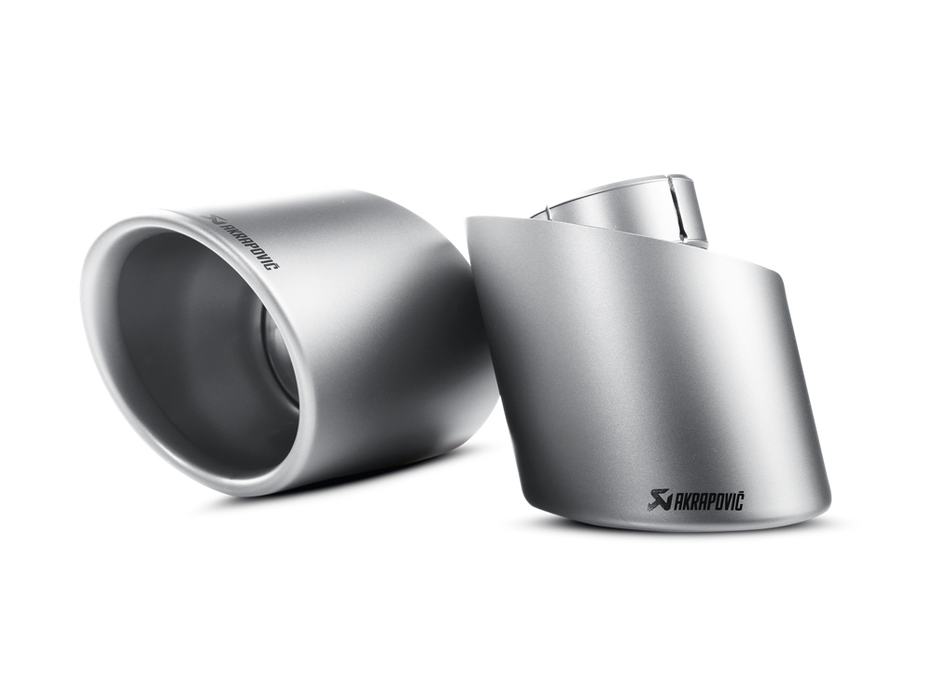

Akrapovic Titanium Tail Pipe Set for Abarth 500/500C (TP-T/S/2)
The tailpipes are the most visible part of the exhaust system, and that’s why we dedicate particular attention to them at Akrapovic. In order to satisfy the most discriminating tastes, we’ve created special titanium-alloy tailpipes. To make our tailpipes stand out from the rest even more, in addition to selecting the finest materials, we also made them larger.
Optional Components:

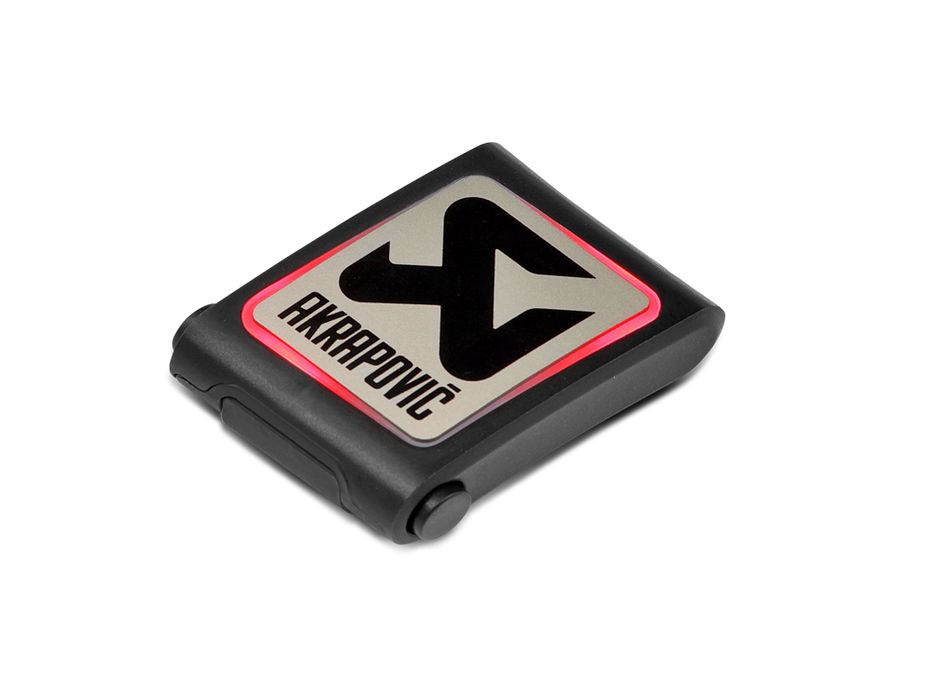

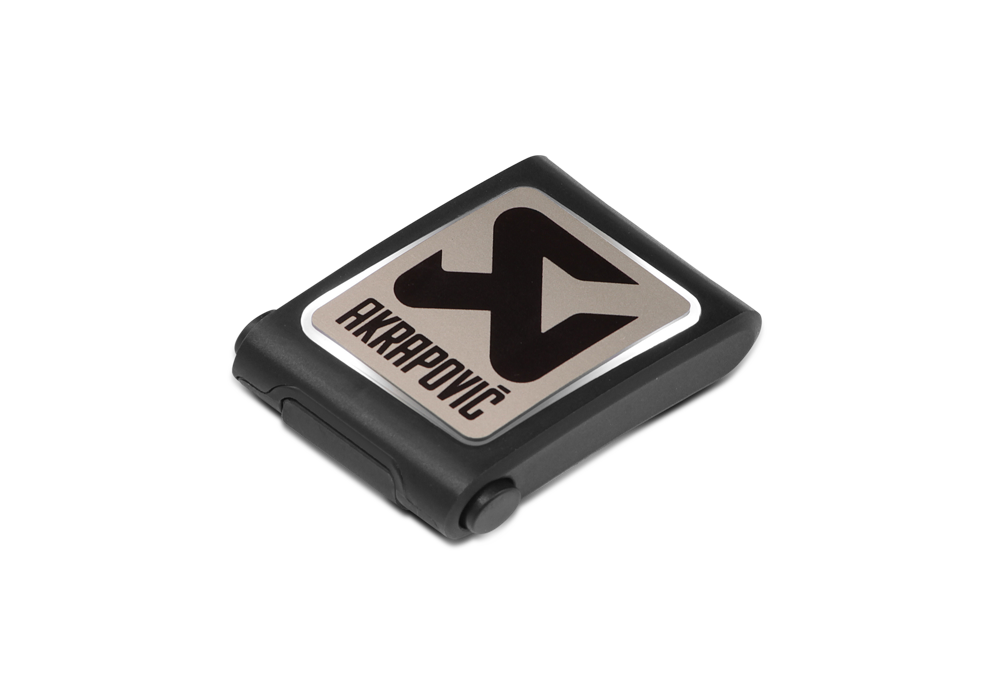

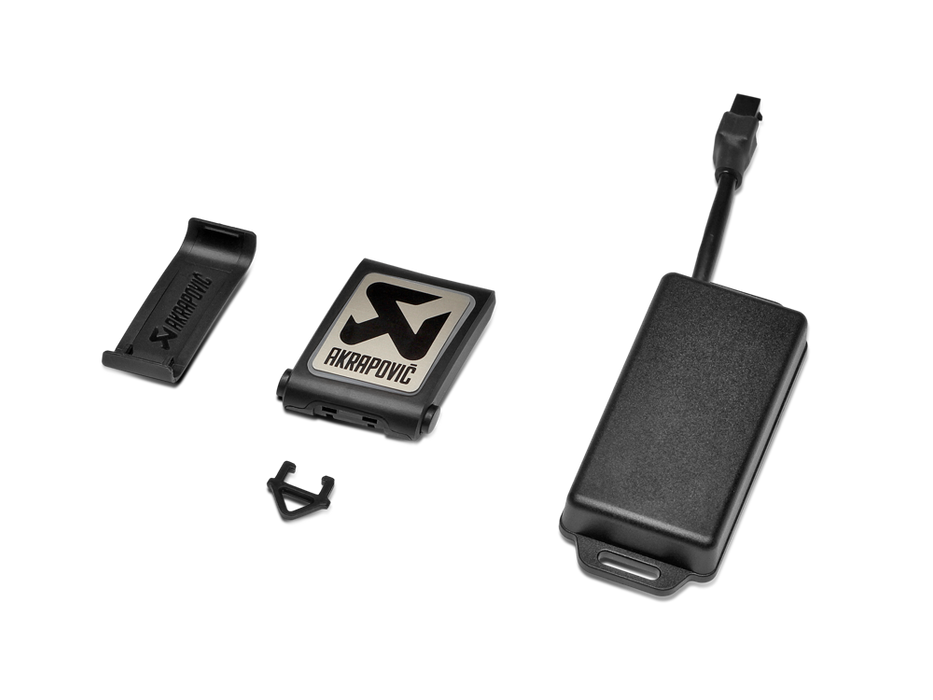

Akrapovic Wireless Kit for Abarth 500/500C/595/595C/Turismo (P-HF876)
The optional Akrapovic Sound Kit enables owners of selected Akrapovic car exhausts to control the sound of the system from the cockpit of their machine. Using Akrapovic technology, drivers can easily switch between the quiet mode and a sportier sound. With the use of a receiver to drive the actuators that open or close the valves at the end of the exhaust system, drivers can use the Sound Remote Controller to regulate the valves.
The system M-FI/SS/1H/1 was homologated in open valve position.
Pictures are symbolic.
Fitment
Akrapovic Exhaust System for Abarth 500/500C - AKRA-ABA-0-KIT
Primary Components Fitment:
M-FI/SS/1H
- Abarth - 500/500C (2008 - 2017)
Mandatory Components Fitment:
TP-CS/1
- Abarth - 500/500C (2008 - 2017)
- Abarth - 595/595C Pista/Competizione (2012 - 2018)
- Abarth - 595/595C/Turismo (2012 - 2020)
TP-T/S/2
- Abarth - 500/500C (2008 - 2017)
- Abarth - 595/595C Pista/Competizione (2012 - 2018)
- Abarth - 595/595C/Turismo (2012 - 2020)
Optional Components Fitment:
P-HF876
- Abarth - 500/500C (2008 - 2017)
- Abarth - 595/595C Pista/Competizione (2012 - 2018)
- Abarth - 595/595C/Turismo (2012 - 2020)
Media
Akrapovic Exhaust System for Abarth 500/500C - AKRA-ABA-0-KIT
Primary Components:
Akrapovic Slip-On Line (SS) for Abarth 500/595 without TailPipes (M-FI/SS/1H)
Schematic new version:
Performance graph:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
EC Type-Approval Certificate:
POS HF:
Mandatory Components:
Akrapovic Carbon Tail Pipe Set for Abarth 500/500C (TP-CS/1)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
Akrapovic Titanium Tail Pipe Set for Abarth 500/500C (TP-T/S/2)
Schematic new version:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
Optional Components:
Akrapovic Wireless Kit for Abarth 500/500C/595/595C/Turismo (P-HF876)
Schematic new version:
User manual - EN:
Installation instructions - EN:
Installation instructions - DE, IT, FR, ES, PT, SI:
