034Motorsport Turbo Inlet Pipe, 1.8T & 2.0T MQB, Audi 8S-TT/TTS 8V-A3/S3, VW MkVII-Golf/GTI/R A7-Jetta/GLI MQB-Tiguan
Product Description:

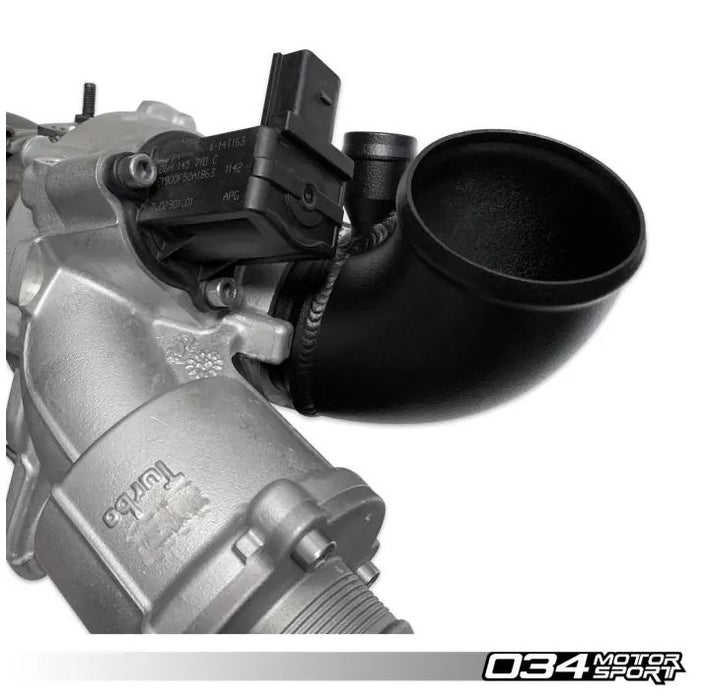

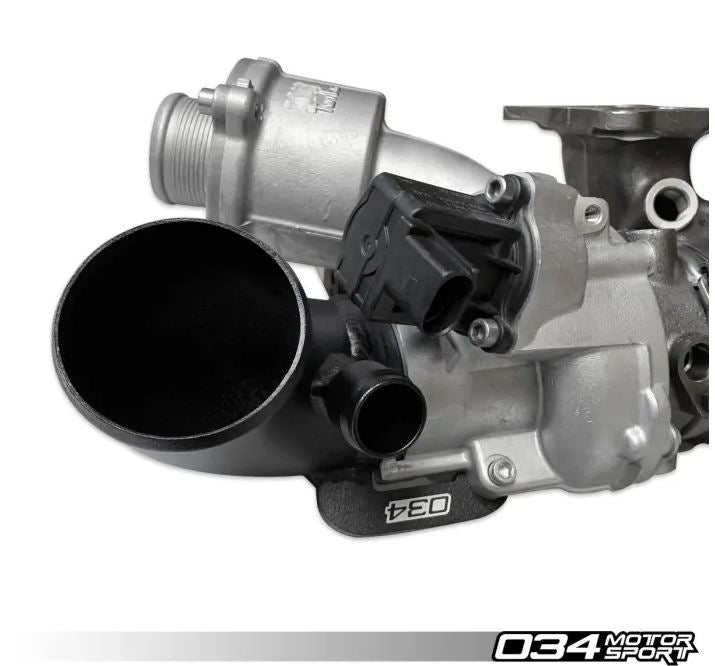

The 034Motorsport Turbo Inlet Pipe for the 1.8T & 2.0T MQB, Audi 8S-TT/TTS 8V-A3/S3, and the VW MkVII-Golf/GTI/R A7-Jetta/GLI MQB-Tiguan, is an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract. The MQB 2.0T Turbo Inlet Pipe is manufactured from 70mm thin wall 6061-T6 aluminum for maximum airflow, with a machined 6061-T6 billet aluminum compressor inlet flange that perfectly mates to allow smooth air entry into the compressor housing. Machined 6061-T6 billet aluminum elements are used to retain the original PCV hose fitting and original mounting location.
The MQB 1.8T & 2.0T Turbo Inlet Pipe is designed to work with OEM style turbo inlet hoses. The bead-rolled edge retains the inlet hose securely to the inlet pipe. The final touch is a durable black wrinkle-coat finish for long lasting good looks with a laser etched 034 logo to top it all off!
Flow Bench Testing:
The optimized volume through the elbow bend and smooth transition into the compressor housing translates into substantially higher airflow than the OEM turbo inlet as well as other competitors on the market. Airflow improvements can lead to higher horsepower and torque gains in applications that require higher airflow.
Features:
- 70mm Inlet Elbow Fabricated From Thin-Wall 6061-T6 Aluminum for Maximum Airflow
- Designed to Work with OEM Style Turbo Inlet Hoses
- Bead Rolled Edge Retains Inlet Hose Securely
- Compressor Inlet Flange Machined from 6061-T6 Billet Aluminum for Smooth Airflow Into Compressor Housing
- Machined 6061-T6 Billet Aluminum PCV Adapter to Retain OE PCV Hose
- Machined 6061-T6 Billet Aluminum Locating Arm Maintains OEM Mounting Provision
- Durable Black Wrinkle-Coat Finish for Long Lasting Good Looks

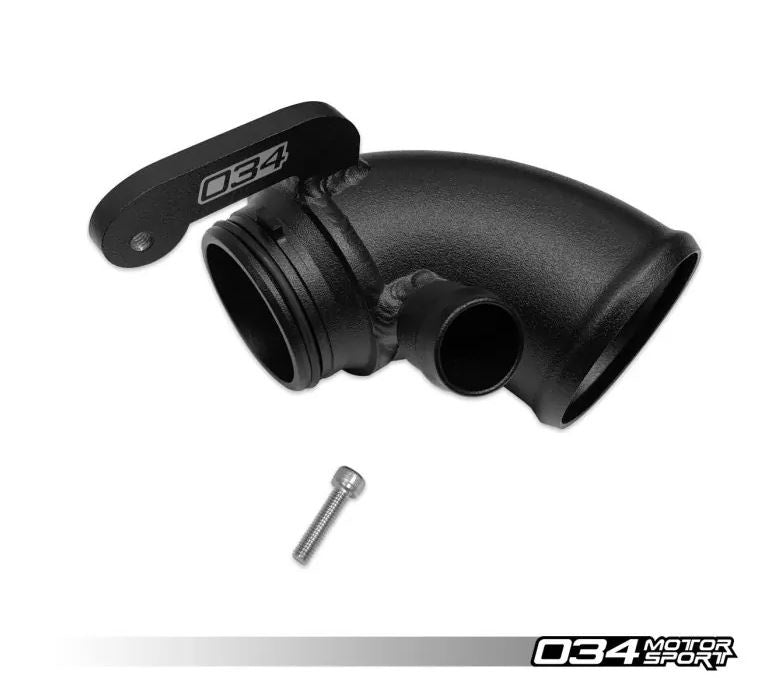

What's Included:
- 034Motorsport MQB 1.8T & 2.0T Turbo Inlet Pipe
- 55mmx3mm Buna-N O-Ring
- M6x1 Socket Head Cap Screw
Fitment
Audi | A3 | 2015-2020 | 8V/8V.5 | 2.0 TFSI
Audi | S3 | 2015-2020 | 8S | 2.0 TFSI
Audi | TT | 2016-2020 | 8S | 2.0T Gen 3
Audi | TTS | 2016-2020 | 8S | 2.0T Gen 3
Audi | Q2 | 2017-2021 | MQB | 1.8T/2.0T
Seat | Ateca | 2016-2021 | Mk1 | 1.8T/2.0T
Seat | Leon | 2012-2020 | MQB | 1.8T/2.0T
Seat | Tarraco | 2019-2021 | Mk1 | 2.0T
Skoda | Octavia | 2013-2020 | Mk3 | 1.8T/2.0T
Skoda | Superb | 2016-2020 | B8 | 1.8T/2.0T
VW | GLI | 2018+ | Mk7 | 2.0 TSI Gen3
VW | Golf | 2015-2020 | Mk7/Mk7.5 | 1.8T Gen3
VW | Golf R | 2015-2019 | Mk7/Mk7.5 | 2.0 TSI Gen 3
VW | GTI | 2015-2020 | Mk7/Mk7.5 | 2.0 TSI Gen 3
VW | Tiguan | 2018-2020** | Mk2 | 2.0T Gen3
**NOTE: This will not fit Tiguans built after August 17, 2020
| The installation of your is a straightforward process but will take approximately 30 minutes to complete. You can access our detailed installation guide by clicking the icon on the left.
|
