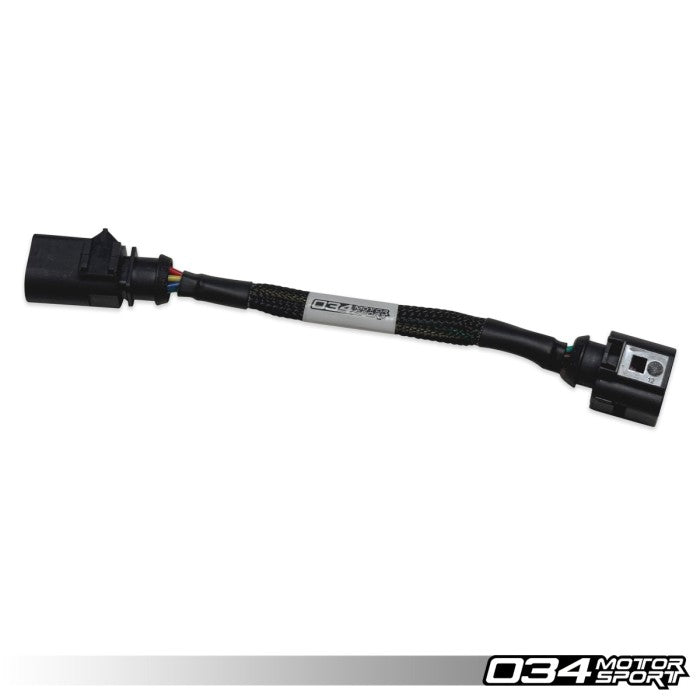

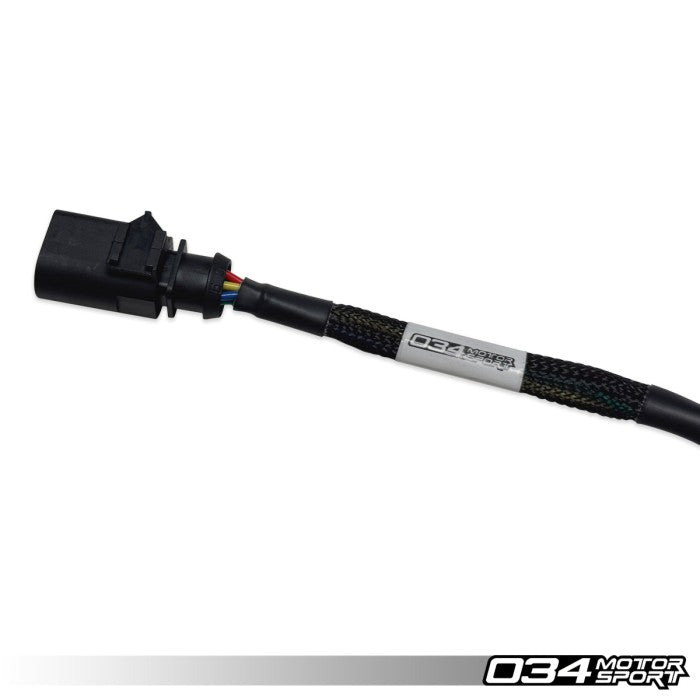

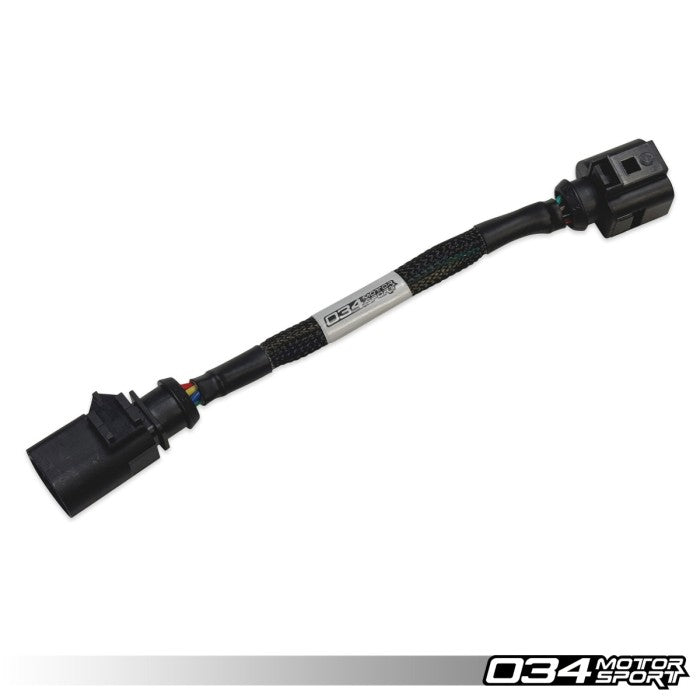

034Motorsport SüperDüper Throttle Body Adapter Harness, Audi EA837 3.0T Supercharged

Product Description:

Do you have a preferred 84mm VDO throttle body and cold air intake, or looking to utilize your existing throttle body setup but want to switch to 034Motorsport software?

Dynamic+ Tuning Software can support all aftermarket throttle bodies with the use of the 034Motorsport SüperDüper Throttle Body Adapter Harness and serves as a replacement harness if you already own an S34 Insuction Bundle. With the 034Motorsport SüperDüper Throttle Body Adapter Harness, switching over to our tuning software makes it easy to enable seamless integration of an 84mm VDO throttle body with the SüperDüper Charger Adapter and your preferred cold air intake, with no repinning of your factory wiring harness required!

Utilizing with 034Motorsport Dynamic+ Tuning

To utilize the 034Motorsport SüperDüper Throttle Body Adapter Harness, you must first ensure that you are utilizing a 034Motorsport Dynamic+ Tune Stage that is compatible with an upgraded Throttle Body. For assistance or if you are unsure, please email tuning@034motorsport.com. After installation, please flash the file in your flashing portal named "SüperDüper Throttle Body File." Once you have flashed this file, you must then perform a Throttle Body Alignment utilizing 034SPI. This function can be found under Toolbox, Engine, Throttle Body Alignment.

Before completing, ensure the following prerequisites have been met prior to utilizing the Throttle Body Alignment:

• No Stored Faults Exist In The ECU.
• Battery Voltage Is At Least 11.5 Volts.
• Throttle Must Be In Resting/Idle Position (Do Not Press The Accel Pedal).
• Throttle Body Must Be Clean And Free Of Dirt And Carbon Deposits.
• Coolant Temp Between 5 And 95 Degrees Celsius.

Features:

• Developed In-House by 034Motorsport's Engineering Team
• Adapter Harness to Run an 84mm VDO Throttle Body with the 034Motorsport SüperDüper Charger Adapter, and an Intake of Your Choice
• VDO/Bosch Style Connectors with Weather Seals
• High-Quality Silicone Wires
• Techflex Braided Sleeve to Protect Wiring

Fitment
