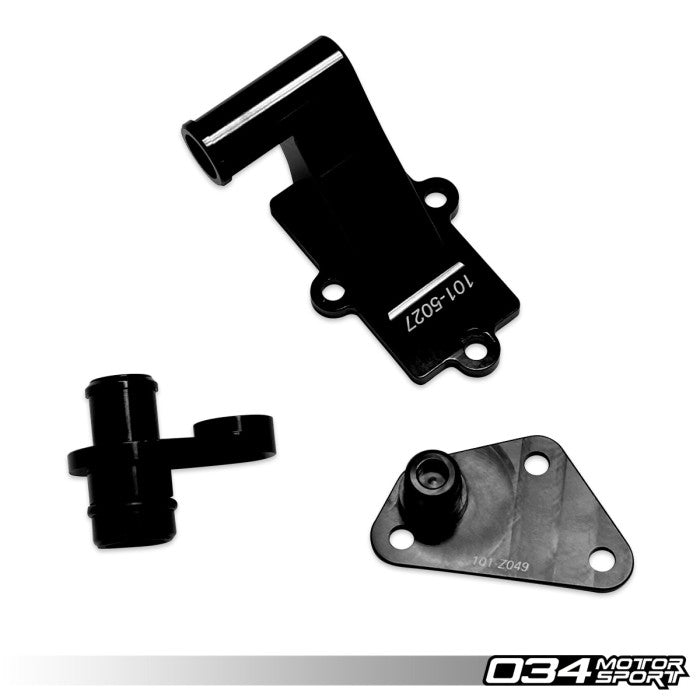

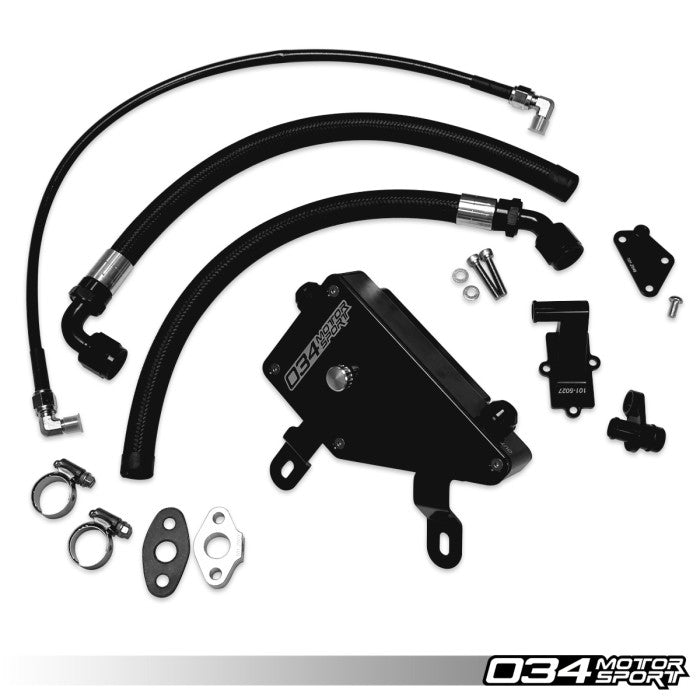

034Motorsport Billet Aluminum Engine Catch Can Kit for Audi 8V.5 RS3 & Audi 8S TTRS
Product Description:
034Motorsport's Billet Aluminum Engine Catch Can Kit is the most comprehensive and effective PCV System solution for the Audi 8S TTRS & 8V.5 RS3. The 034Motorsport Billet Catch Can Kit collects oil from the factory PCV system and replaces the PCV outlet to the turbo inlet. The Billet Aluminum Catch Can provides optimal crankcase ventilation while keeping oil and water vapor out of the intake track.

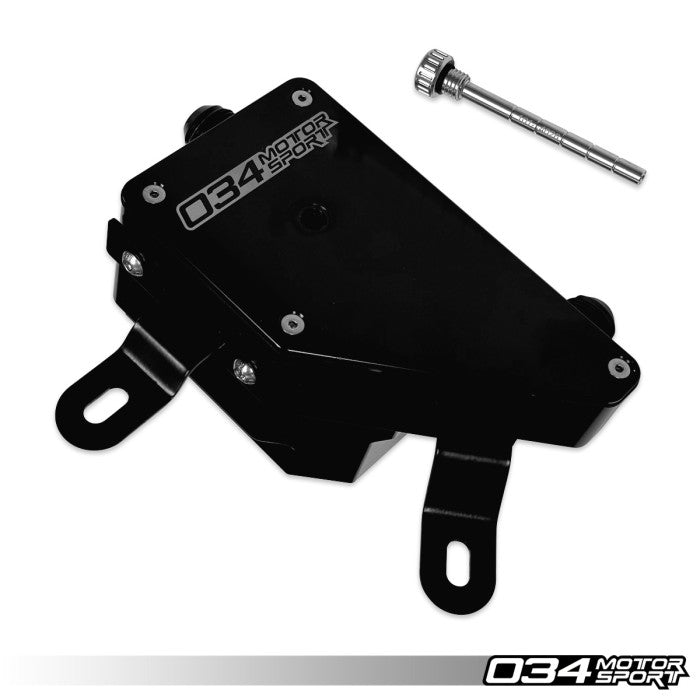

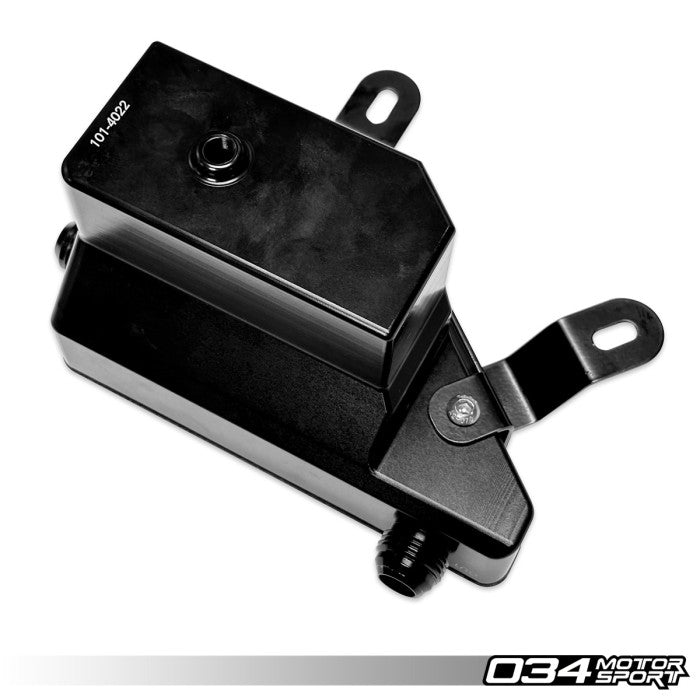

The body of the catch can is CNC milled from 6061-T6 billet aluminum and black anodized for a durable and stealthy finish. External mounting brackets are powder coated to prevent corrosion and enhance appearance. Finally, all mounting points for the Engine Catch Can are stock mounting points, which makes for an easy installation with no drilling or cutting necessary. For added convenience, there is an integrated dipstick allowing for a quick and easy way of checking levels.
The Billet Catch Can Kit also integrates a built-in drain system that drains all oil collected back into the turbo oil return line and the engine block. The oil collected in the catch can is perfectly safe to be drained back into the engine, allowing for service-free use!
Features:
- 6061-T6 Billet Aluminum Housing
- Black Anodized Finish for Durability and Stealth
- Stainless Steel Internal Baffle Plate
- Powder Coated Vehicle Mounting Brackets
- Utilizes Available Stock Mounting Points
- Totally Reversible Installation
- NOTE: 2019+ Vehicles Require an Extra Plug on the PCV. This is Included With Our Kit.
EMISSIONS DISCLAIMER:
This product is sold for racing use as well as use on vehicles not registered for on highway use. By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
Fitment
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | RS3 | 2017-2020 | 8V.5 | 2.5 TFSI EVO |
| Audi | TTRS | 2018-2020 | 8S | 2.5 TFSI EVO |
 |
The installation of your is a straightforward process that will take approximately 3 hours to complete. You can access our detailed installation guide by clicking the icon on the left.
|
